SD230 FLEX & SD230 MINI

SD230 FLEX & SD230 MINI

Dual-probe, non-contacting, fully configurable double shell and missing tab for conversion presses.

A standard component on conversion presses all over the world, the SD230 FLEX and the SD230 MINI double shell and missing tab detection systems provide two key quality inspection points on the conversion press, preventing two shells from entering a press and ensuring the tab has been attached as the end exits the machine. The SD2230 FLEX and the SD230 MINI function the same as previous generation double shell and missing tab detectors with additional features and flexibility.

The following previous generation double shell and missing tab detectors are obsolete and directly replaced with the SD230 FLEX and SD230 MINI: SD200, SD122, SD123, SD133, SD220, SD222, SD223, SD230, SD232, SD233.

Series Controls Options

ET230, MI230, SD230 MINI, SD230 FLEX,

Build full system

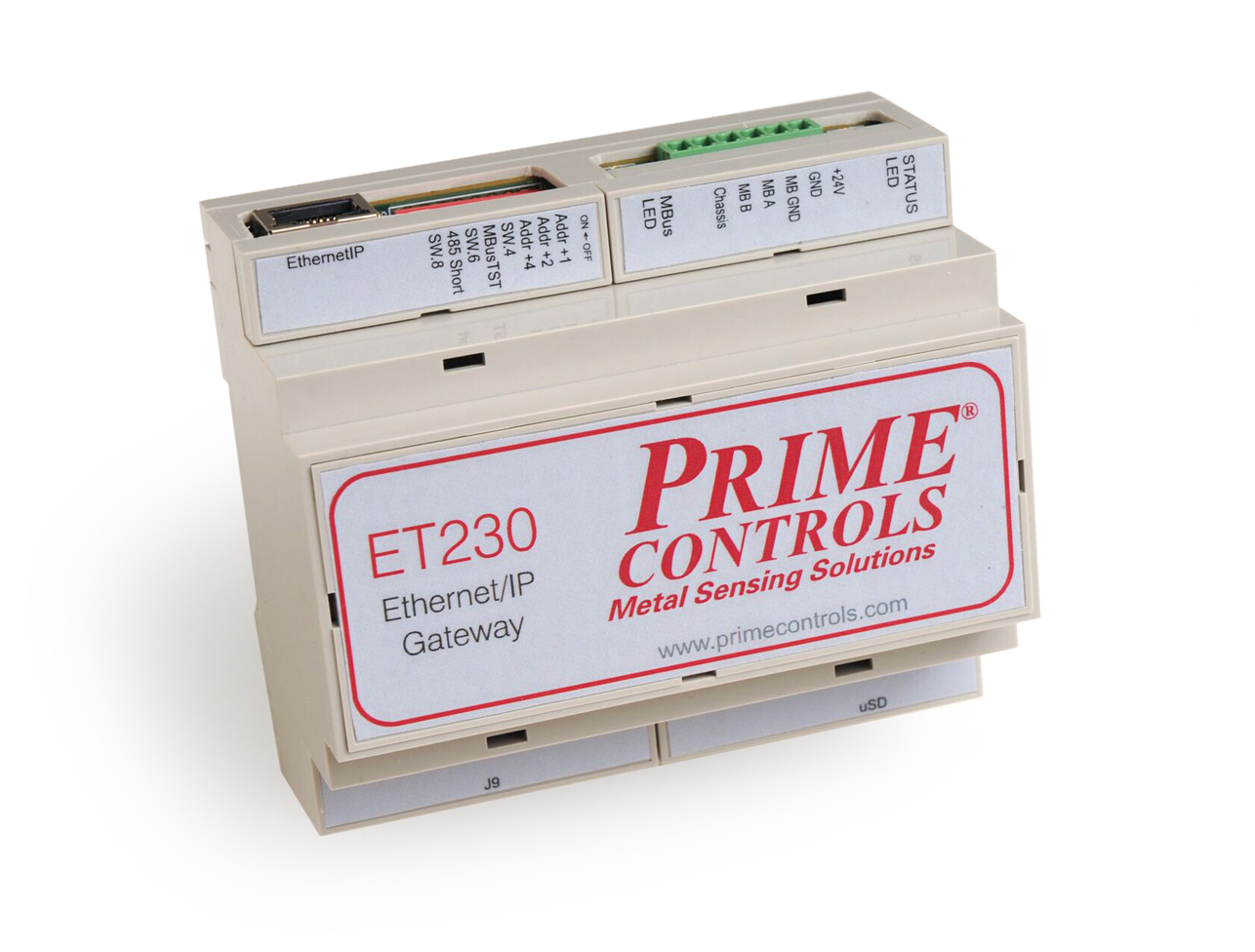

ET230

Industrial communications gateway via EthernetIP that allows the TriSense system to communicate with OEM programmed PLC and HMI.

specifications
Add To QUOTE
QTY 1

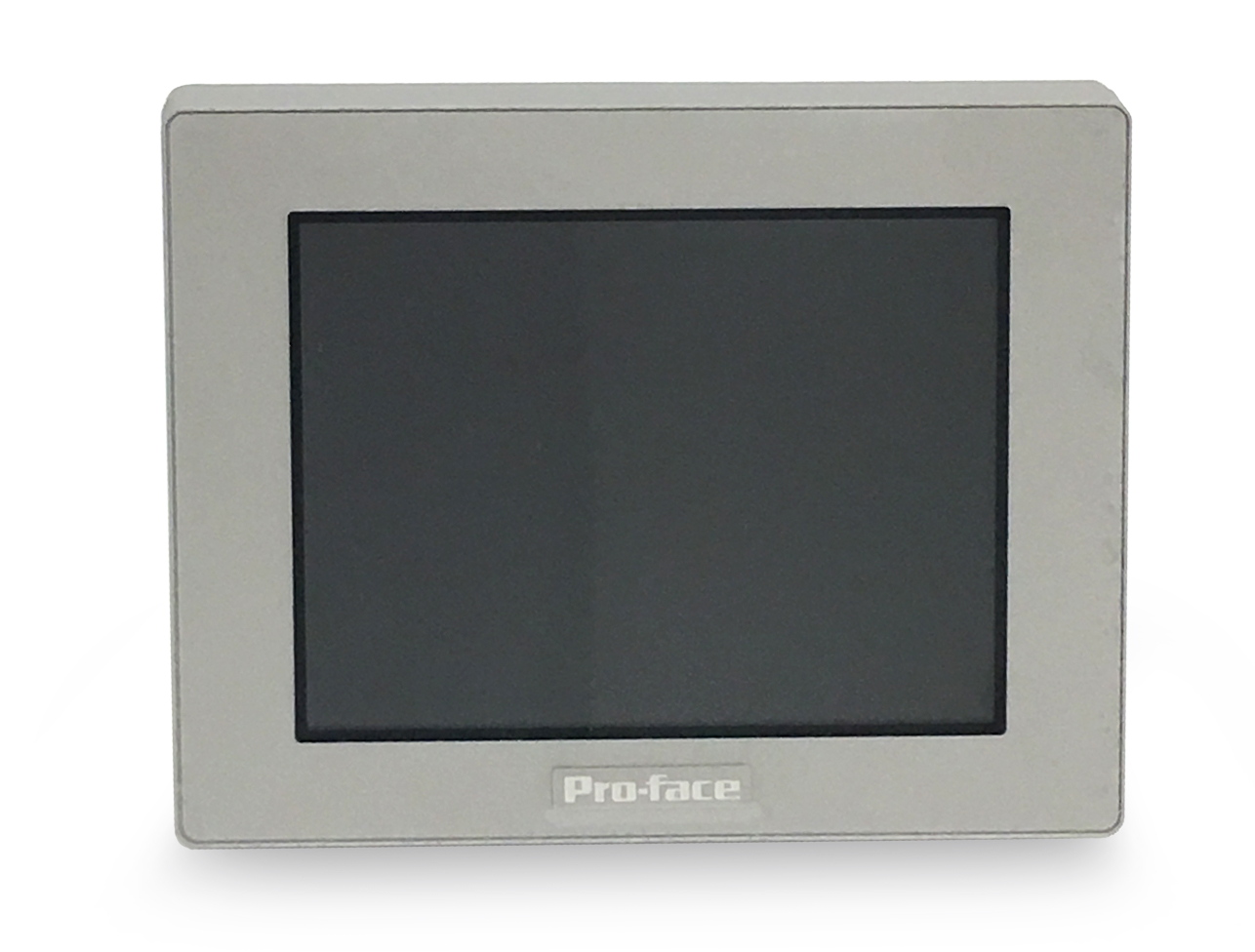

MI230

Preprogrammed HMI for retrofitting presses to allow for industrial communications.

specifications
Add To QUOTE
QTY 1

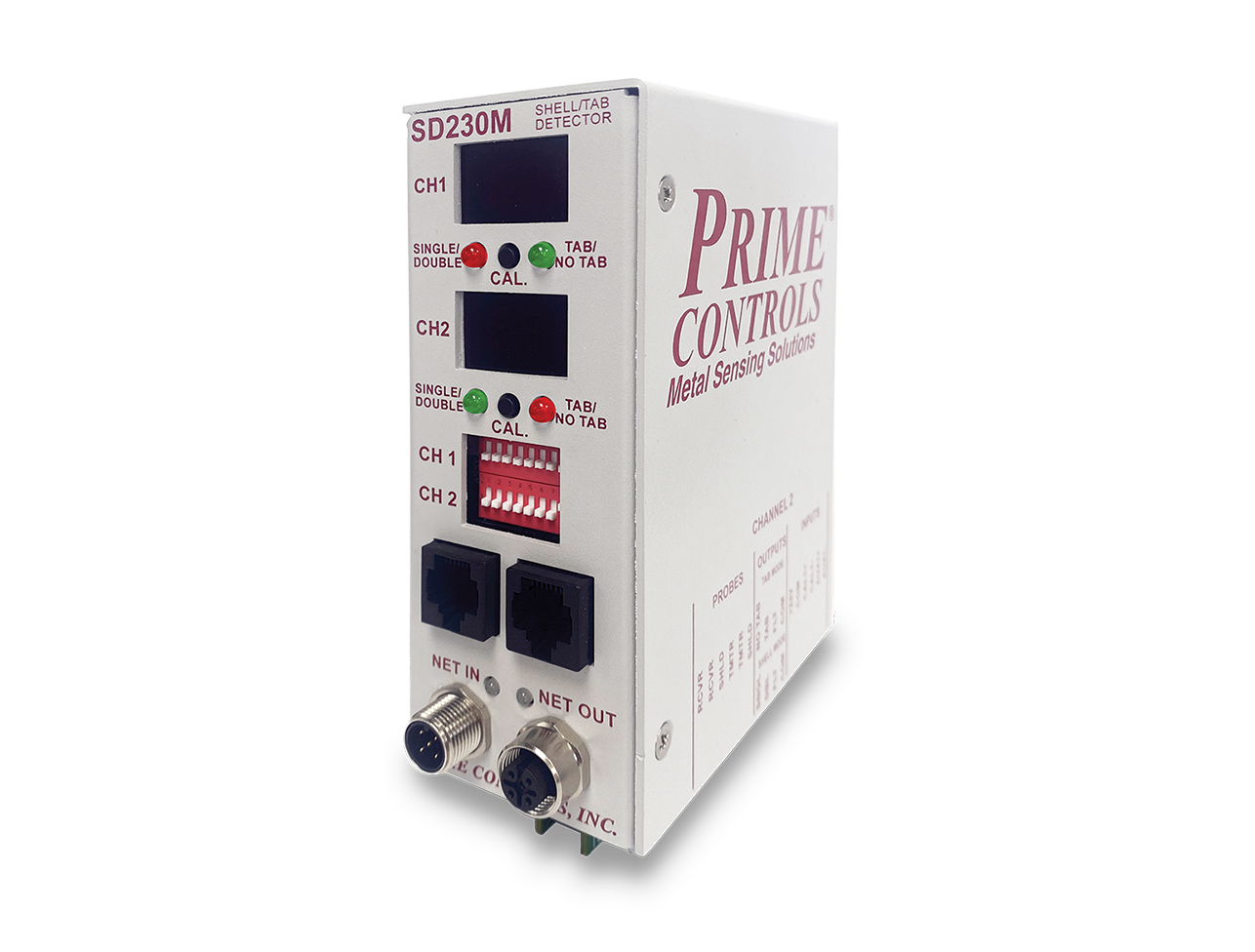

SD230 MINI

Dual-probe, non-contacting, fully configurable double shell and missing tab detector for conversion presses.

specifications
Add To QUOTE
QTY 1

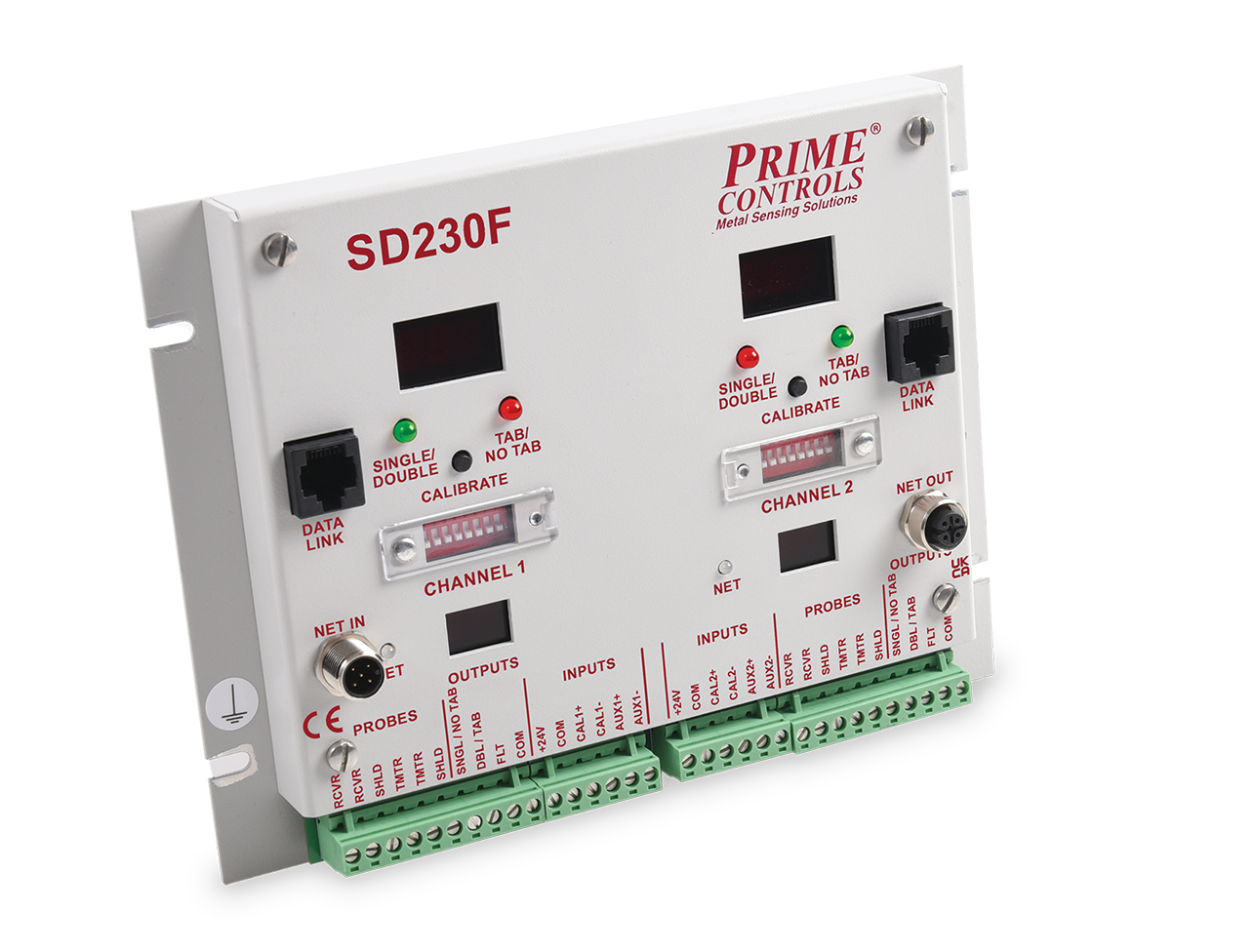

SD230 FLEX

Dual-probe, non-contacting, fully configurable double shell and missing tab detector for conversion presses.

specifications
Add To QUOTE
QTY 1

Select Your Sensors & Cables

Build the Complete System

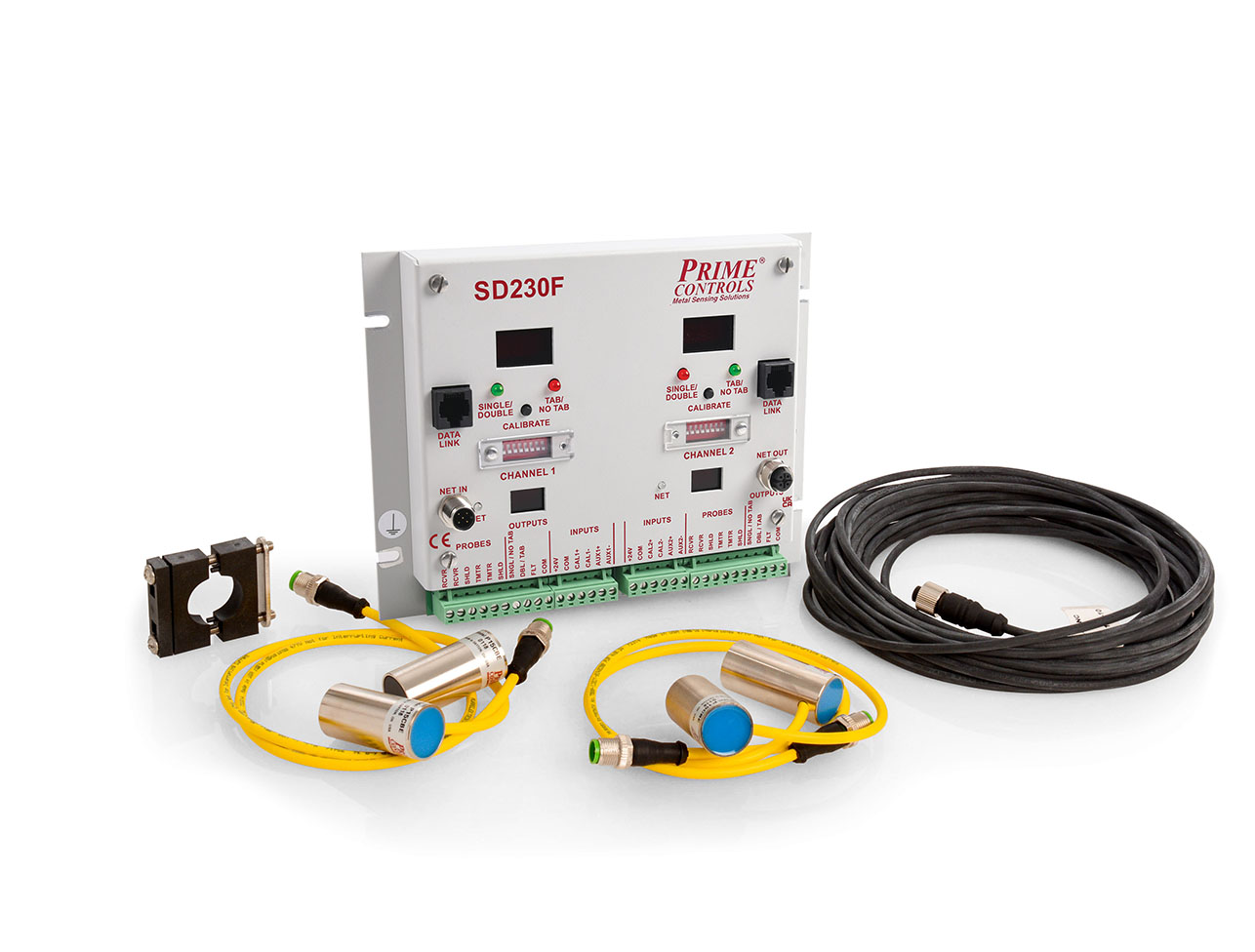

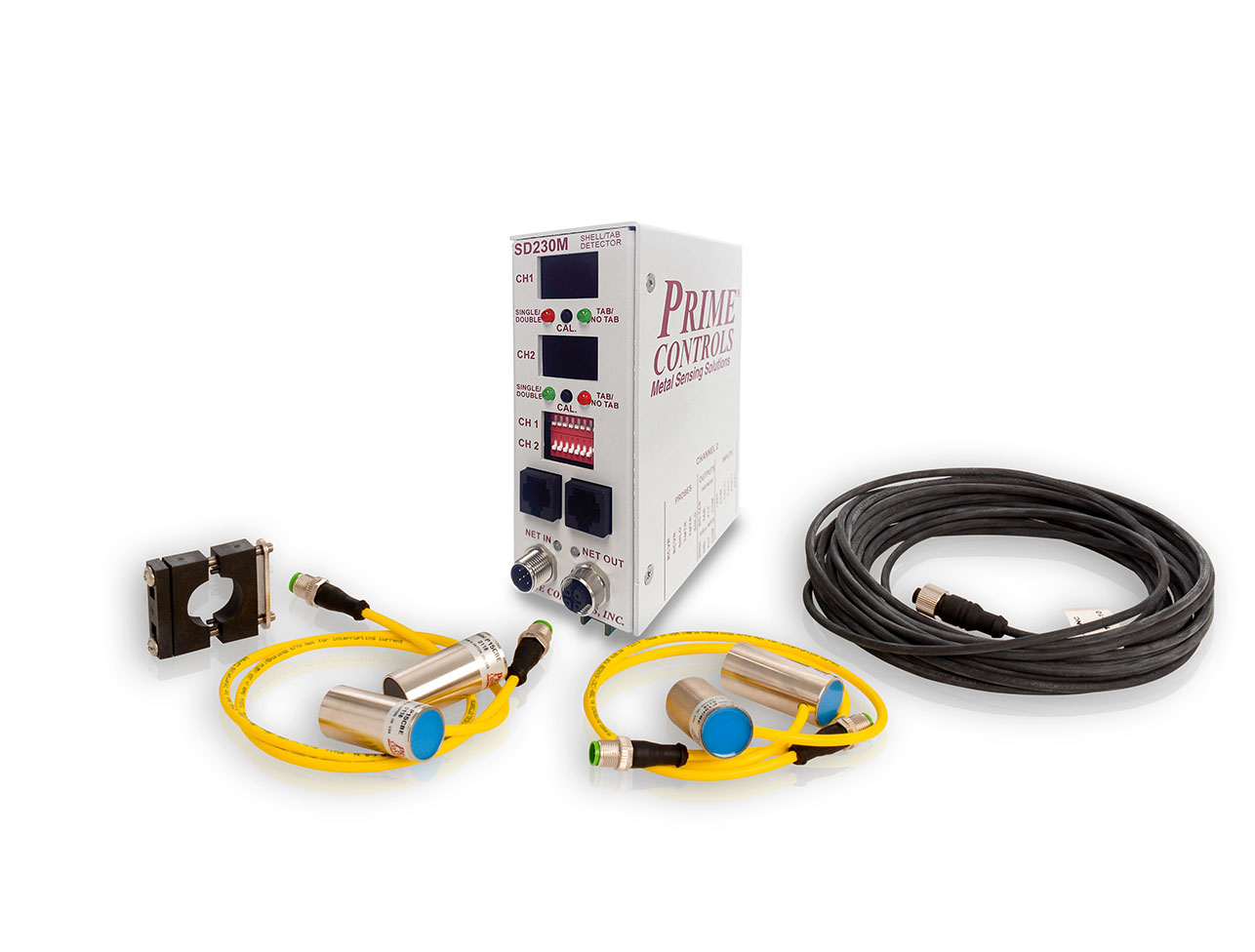

1 SD230 FLEX or SD230 MINI Shell/Tab Detector

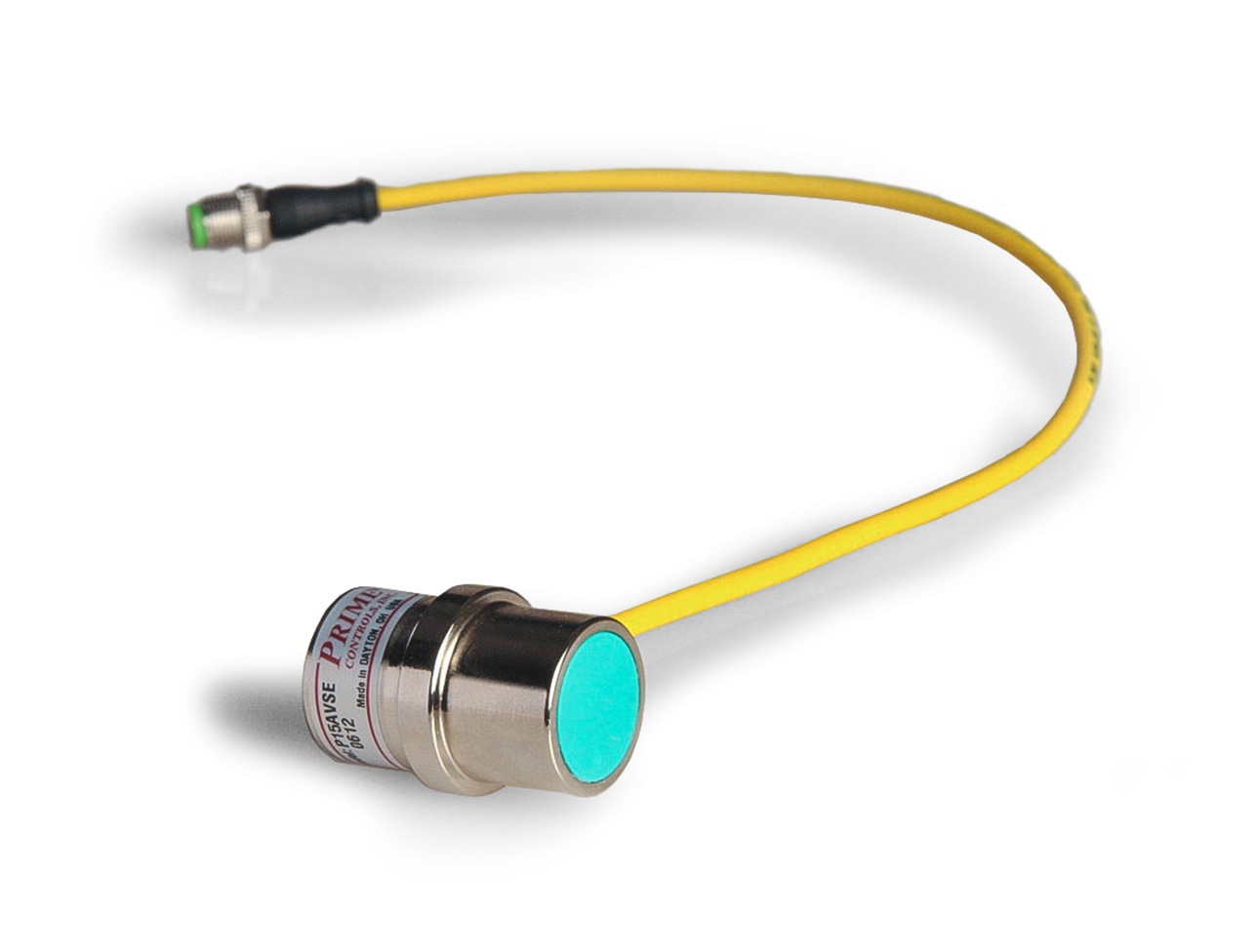

4 P15 Series Probes
4 CBL101 Series Cables
1 ET230 EthernetIP Gateway (Optional)
1 MI230 HMI Display (Optional)

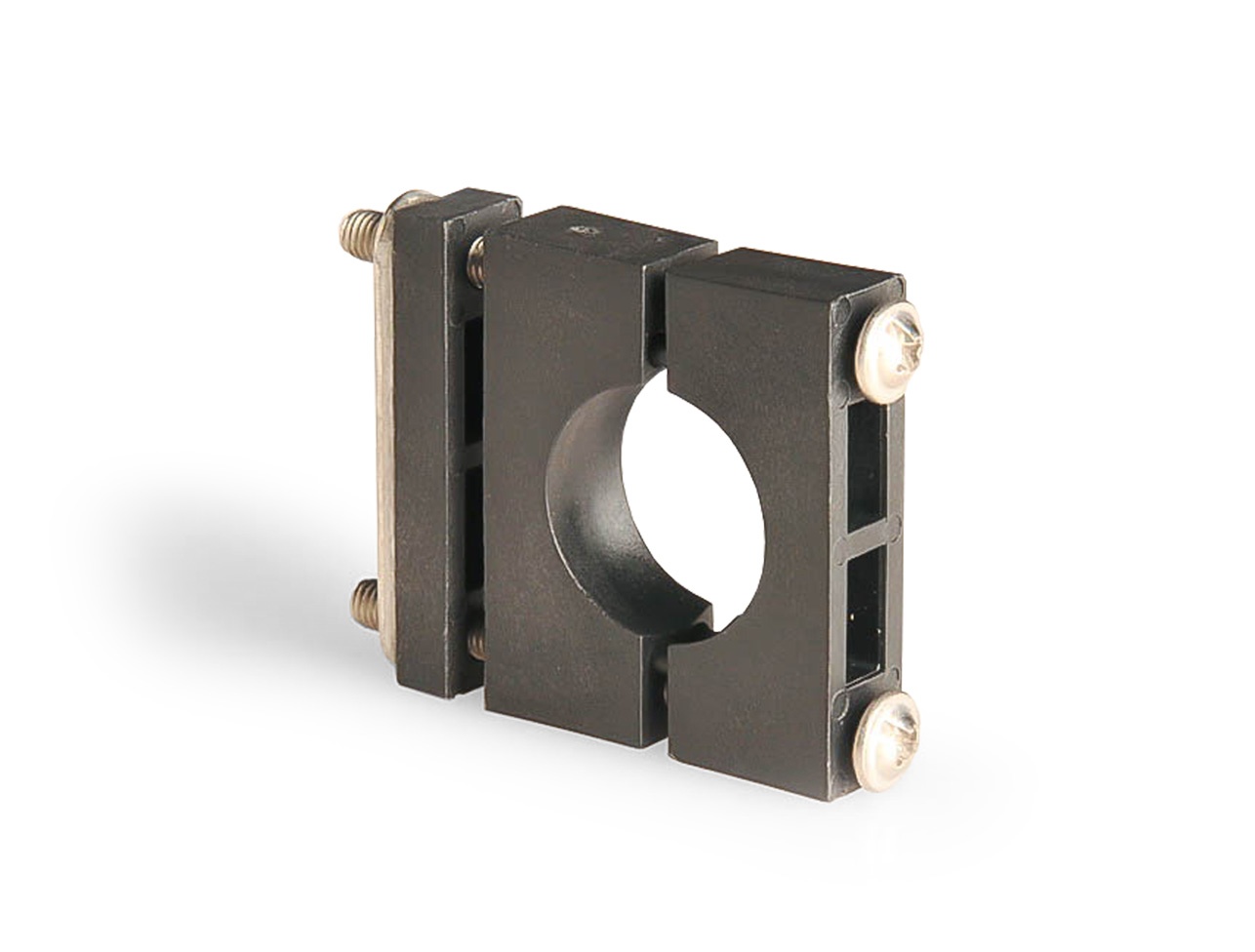

Mounting bracket available if needed.
