Food end light leak detection for high-speed EOE conversion presses featuring Eclipse Technology.
Prime Controls’ light-based leak detection system featuring Eclipse Technology uses the latest advancements in light generation and detection technology to achieve industry-leading performance that outperforms existing light testing technology 20x, easily detecting 0.5 micron holes and cracks in can ends at speeds over 1,000 ends per minute. Using ultra-sensitive leak detection technology, Eclipse technology penetrates smaller cracks more efficiently improving the detection of circuitous defects. Built-in self-test and monitoring ensures all ends are fully and completely tested for cracks and holes.
The detection series recommended for food ends is comprised of the LH200H Light Detector and SL100H-2 LED Illuminator. The compact two-component system mounts directly on the outfeed plate of a conversion press, one pair per lane.
EP200-OPT, LH200H, SL100H-2, RK100,

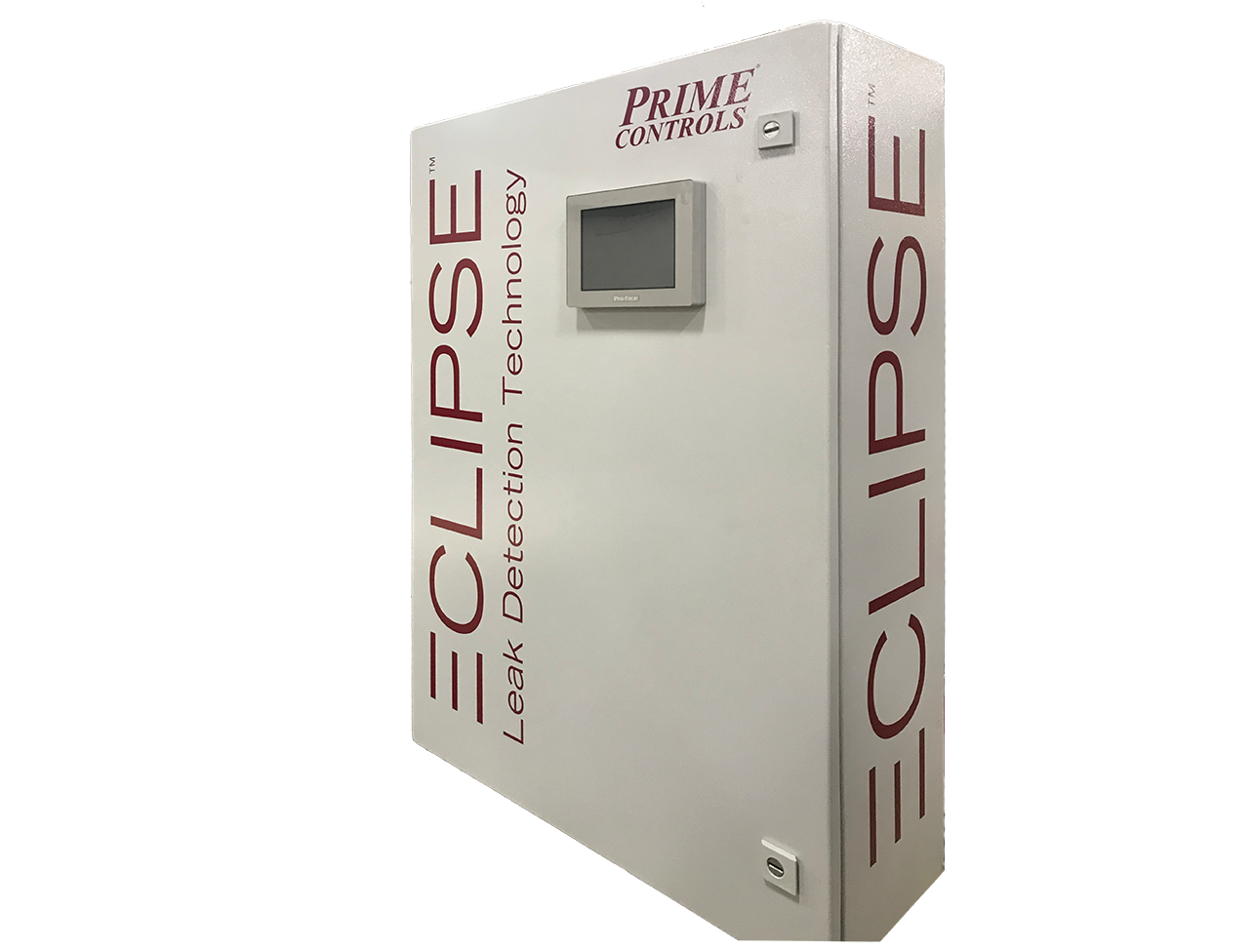

IP66 NEMA4 cabinet to house power supplies, SL100H-1/SL100H-2 drivers, reject solenoid relays, and terminal blocks. Door-mounted 5.7" color touch-panel provides set up and system monitoring capabilities for all four lanes.specifications operating instructions
Light detector featuring Eclipse Leak Detection Technology for food ends on conversion presses, outperforming industry standards.specifications operating instructions

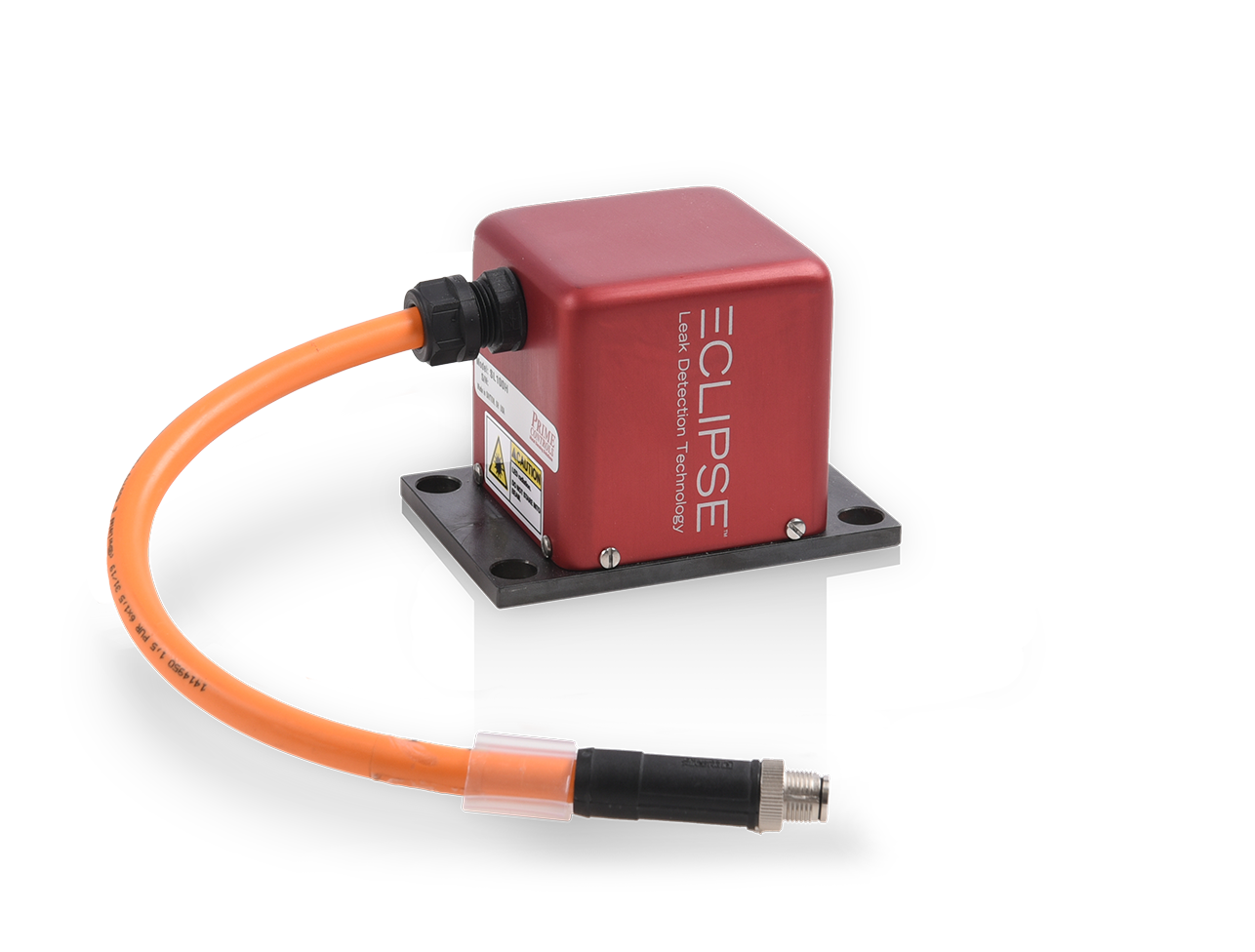

All-solid-state LED Illuminator used in the Food End Light Leak Detection System on conversion presses.specifications operating instructions
1 LH200H Light Detector
1 SL100H-2 LED Illuminator
1 EP200-OPT (1/machine up to 4 lanes) Enclosure

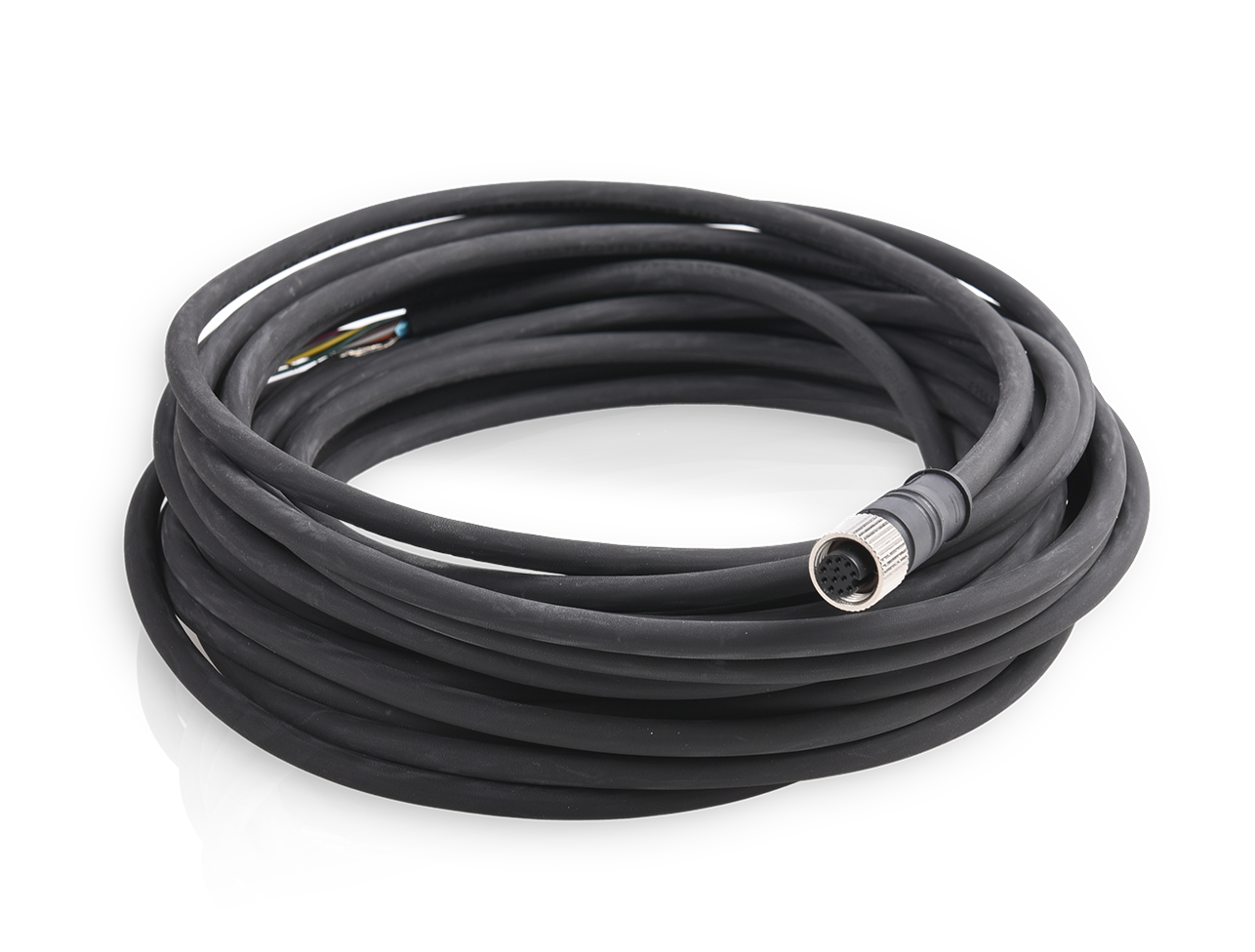

1 CBL144 Series Cable
1 CBL145 Series Cable
1 RK100 Rejector Kit (Per Lane)
