Can body light leak detection for Necker machinery and standalone can body light testers featuring Eclipse Technology.
Prime Controls’ light-based leak detection system featuring Eclipse Technology uses the latest advancements in light generation and detection technology to achieve industry-leading performance that outperforms existing light testing technology 20x, easily detecting 0.5 mil (0.0005") holes in can bodies at speeds over 5,000 cans per minute. Using ultra-sensitive leak detection technology, Eclipse technology penetrates smaller cracks more efficiently improving the detection of circuitous defects. Built-in self-test and monitoring ensures all ends are fully and completely tested for cracks and holes.
LH1000H Series, SL1000H Series, TE1000 Series, EP1000H Series,

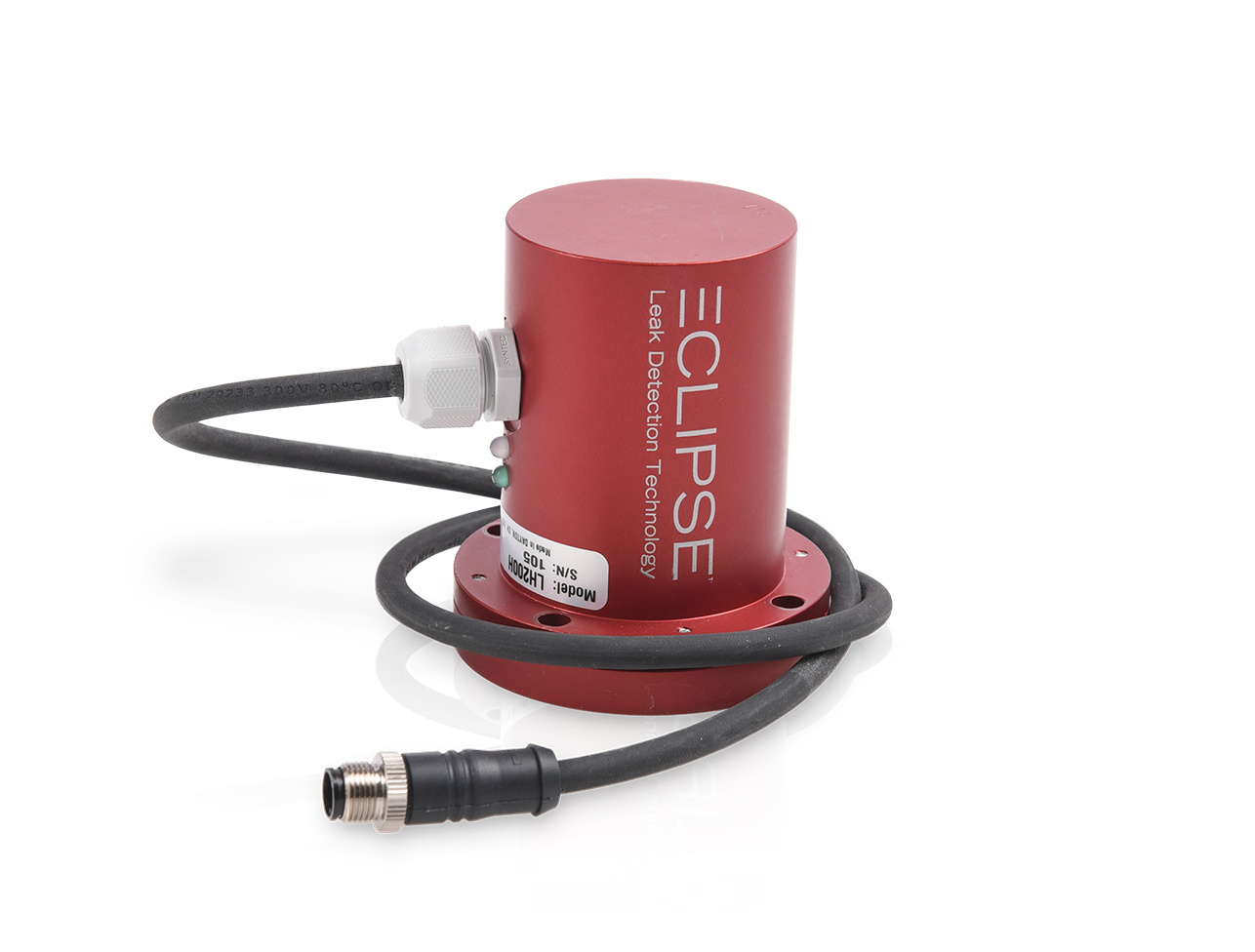

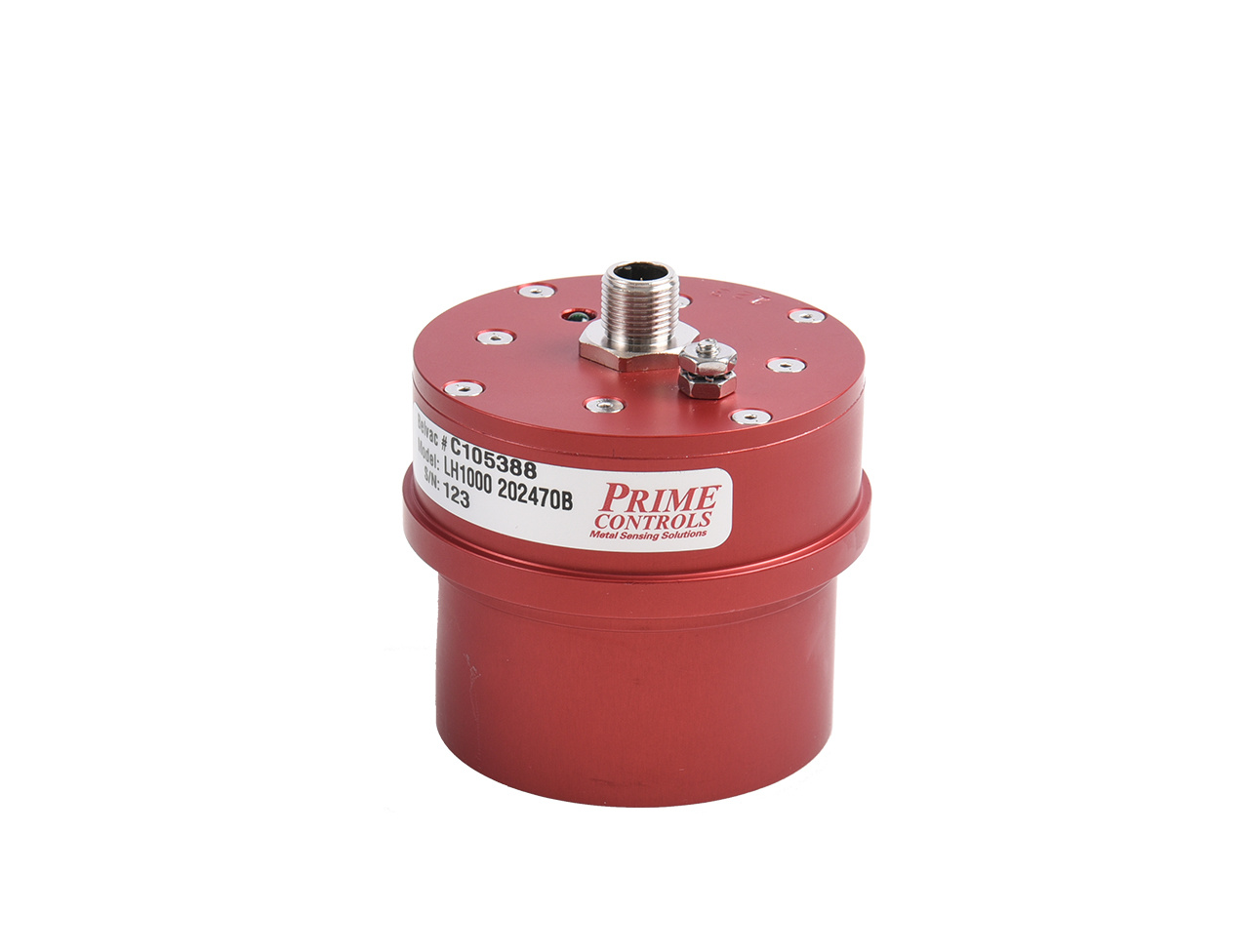

Light detector featuring Eclipse Leak Detection Technology, easily detecting 0.5 mil (0.0005") holes in can bodies at speeds over 5,000 cans per minute.
specifications

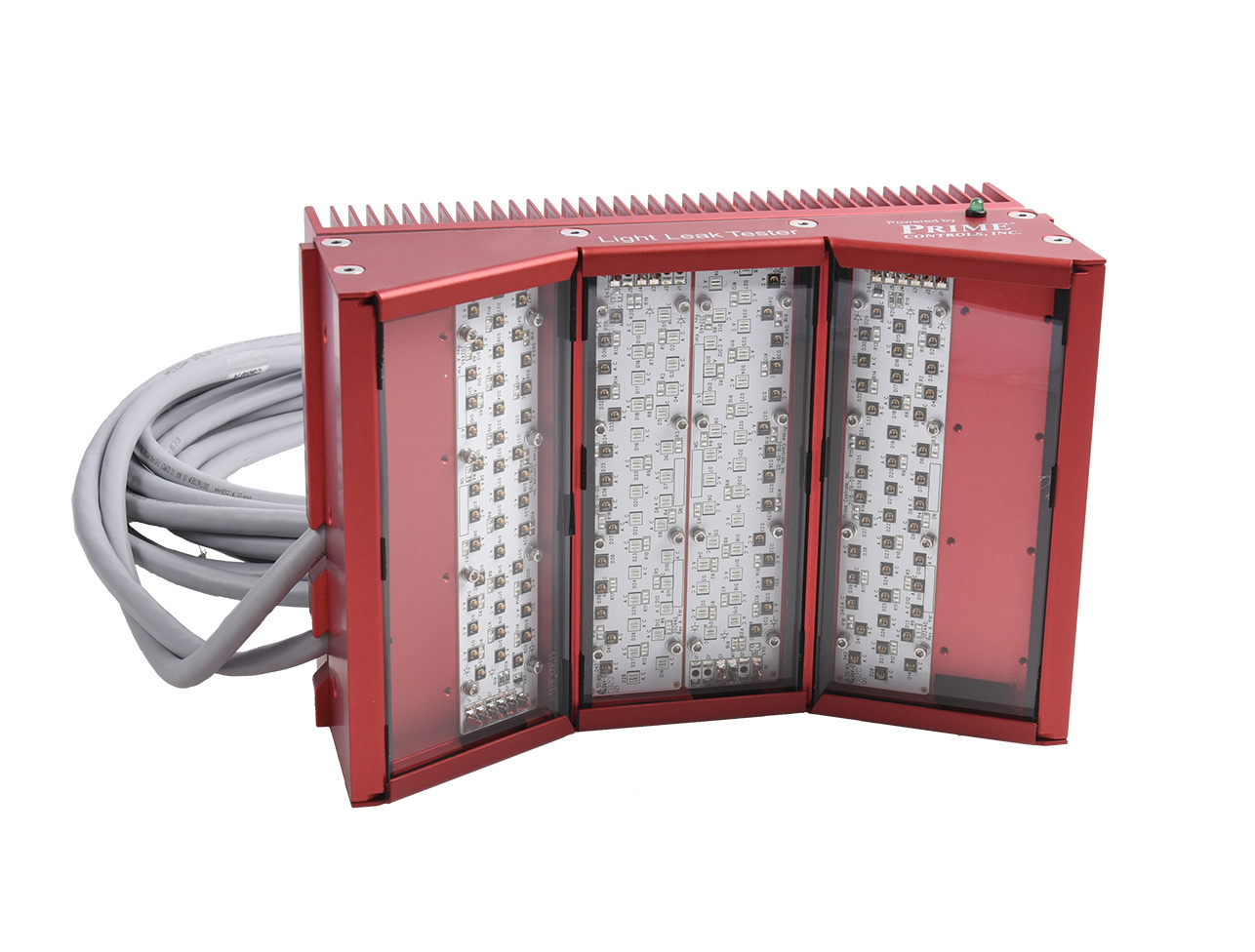

All solid-state LED-based illumination system providing constant current drive to the LEDs for detection consistency and pulse confirmation to the LH1000H Series unit ensuring correct leak detection. Variations available to fit various can sizes: 3x3, 3x4, 3x5
specifications

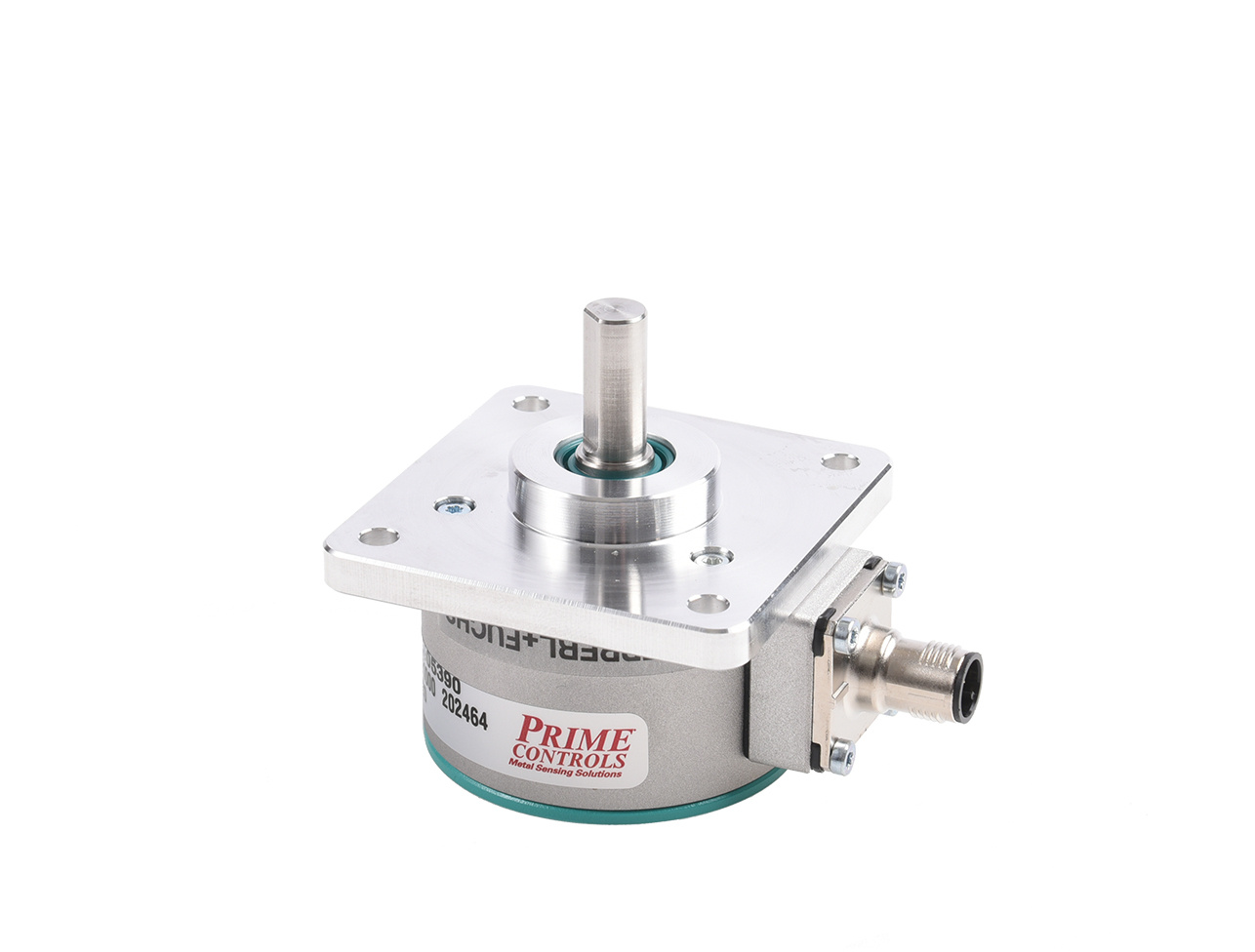

Shaft mounted differential encoder provides positioning information to the MD100 controller for precise measurement timing and body rejection.
specifications

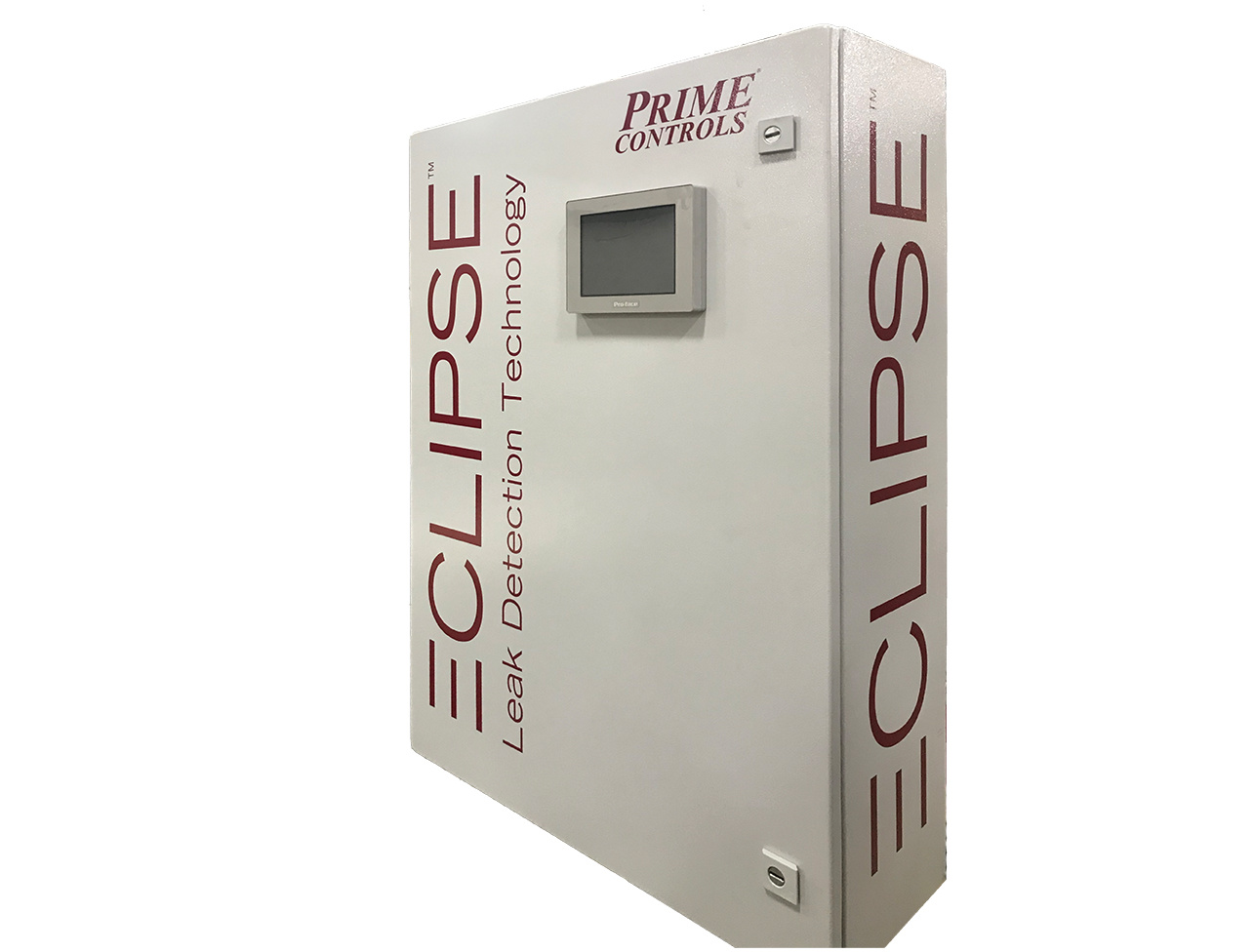

IP66 NEMA4 cabinet houses power supplies, SL1000H drivers, MD100 controller, and terminal blocks. The cabinet may include an integrated cooler to maintain optimum operating temperatures for the electronics. Connectors are used for all cables simplifying setup and repair. Optional door mounted HMI provides set up and system monitoring capabilities.
specifications1 LH1000H Series Light Detector
1 SL1000H Series LED Illuminator
1 TE1000 Series Timing Encoder
1 EP1000H Series Enclosure

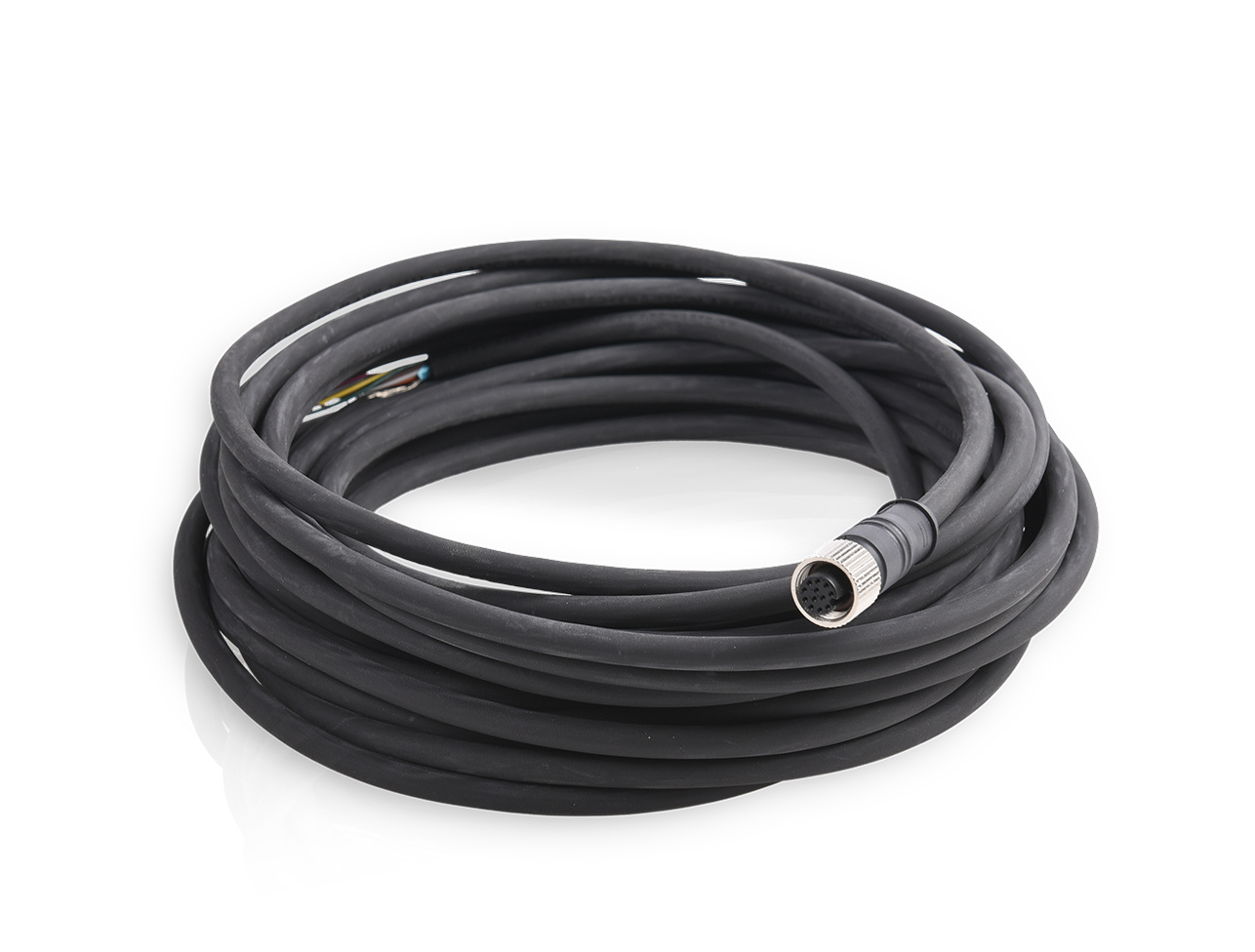

1 CBL144 Series Cable
1 CBL145 Series Cable
FA1000H Series Fan System Optional
Dual-probe, non-contacting, fully configurable double shell and missing tab for conversion presses.
Dual-probe, non-contacting double sheet detection systems for all metal types.
