Air leak detection system for a variety of leak test machines.
Smart Test Module - air test module for containers. Combines pressure sensor and processor in one package for multiple types of air leak detection. Can be used for bell test, decay test, or peak pressure sensing.
RI100, RR100, STM1-1.5, STM1-15, STM1-5, T1, PIM1,

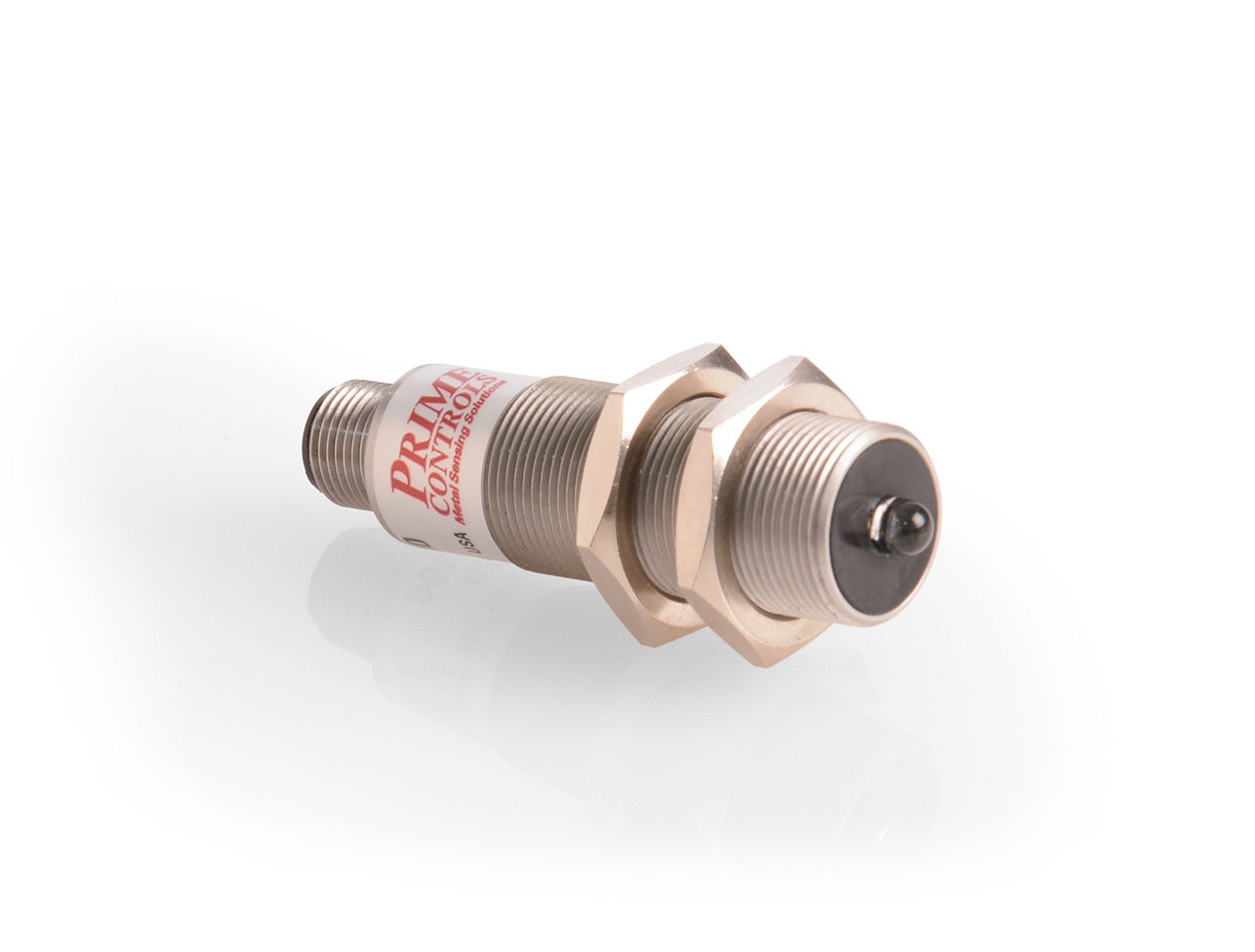

A reset illuminator designed to excite the RESET circuit of an STM1 pressure test module during air leak testing.

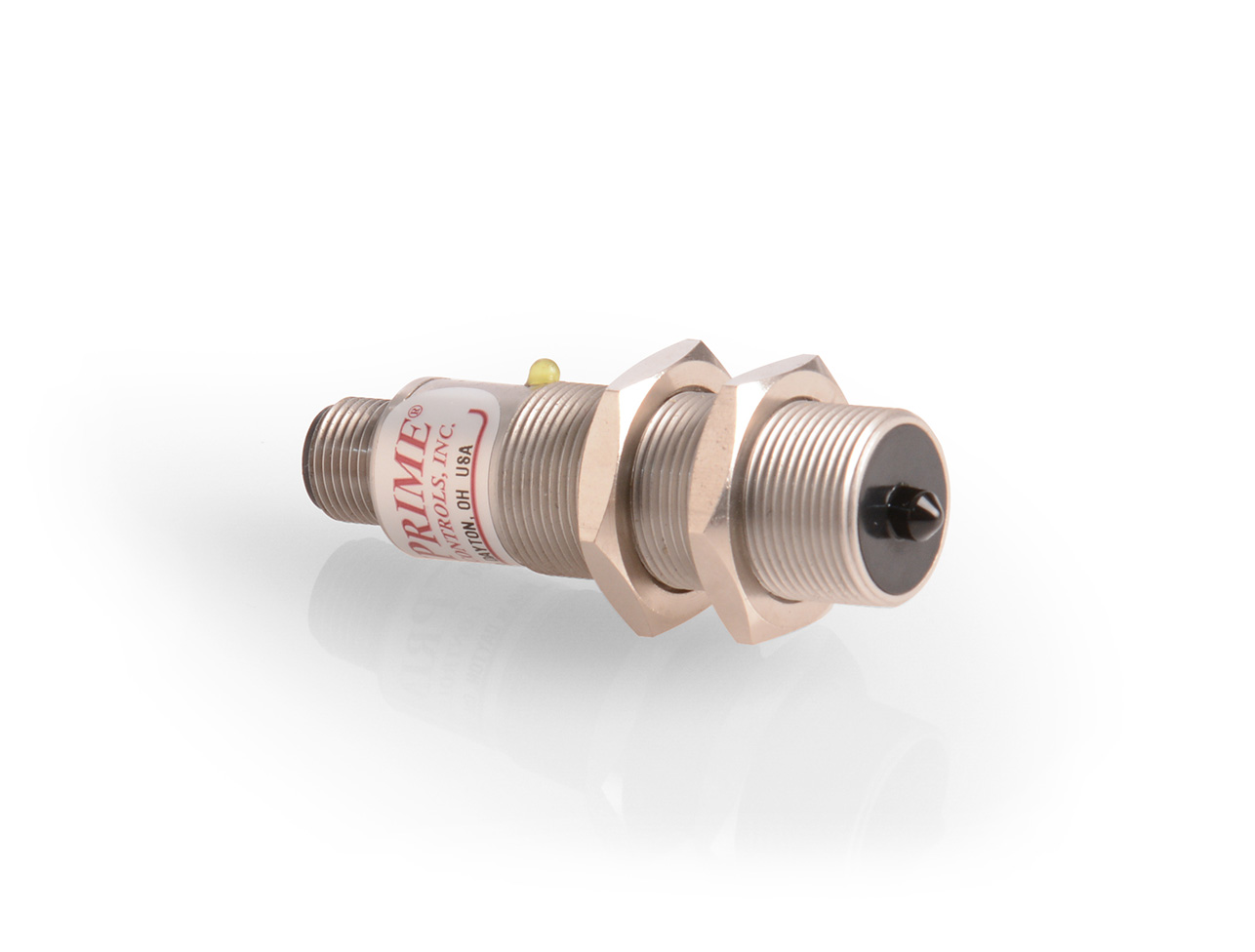

specifications operating instructionsAn infrared light receiver designed to sense the report output signal of the STM1 pressure test module.

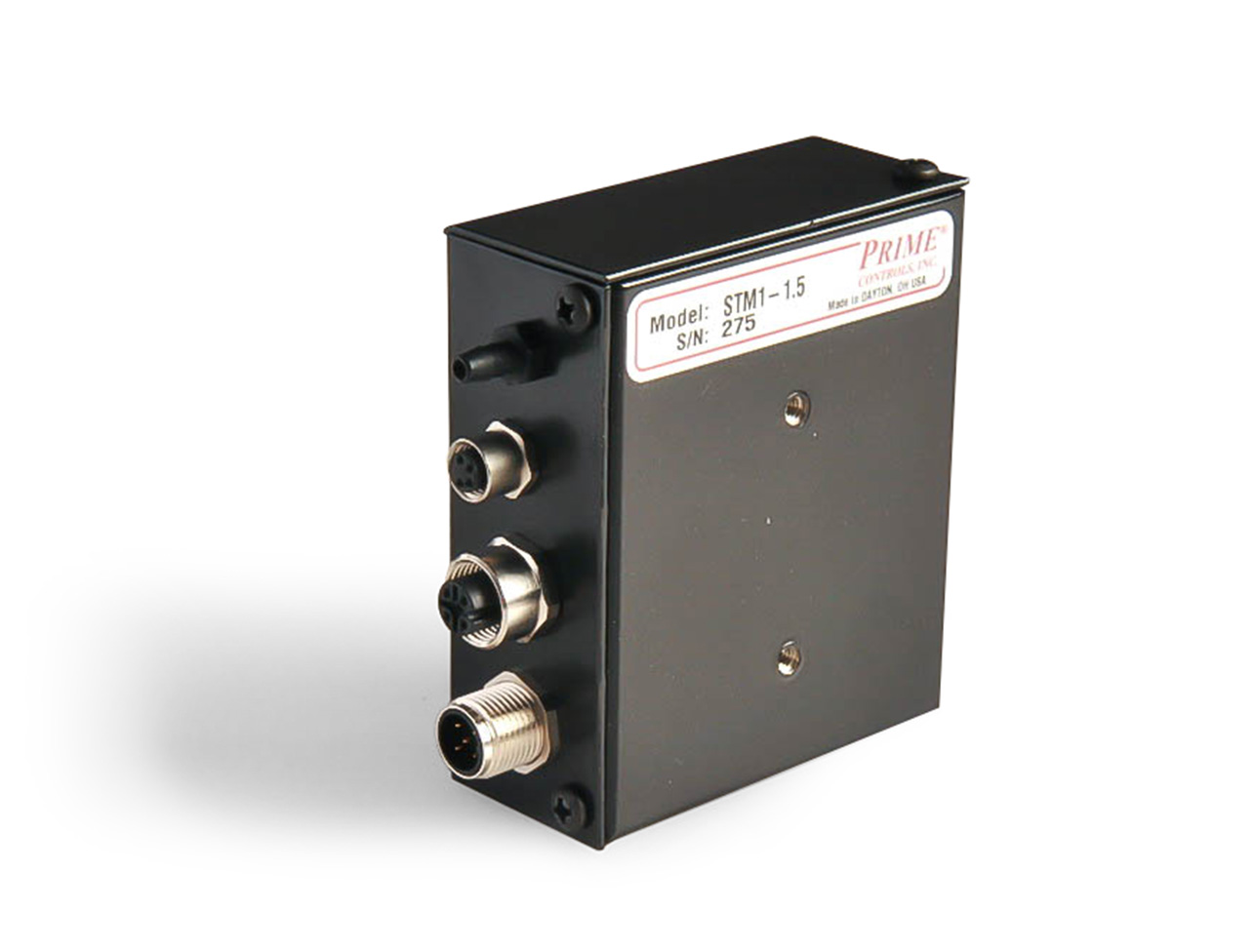

specifications operating instructionsLow pressure: 0 to 1.5 PSI range.
specifications operating instructionsLow pressure: 0 to 15 PSI range.

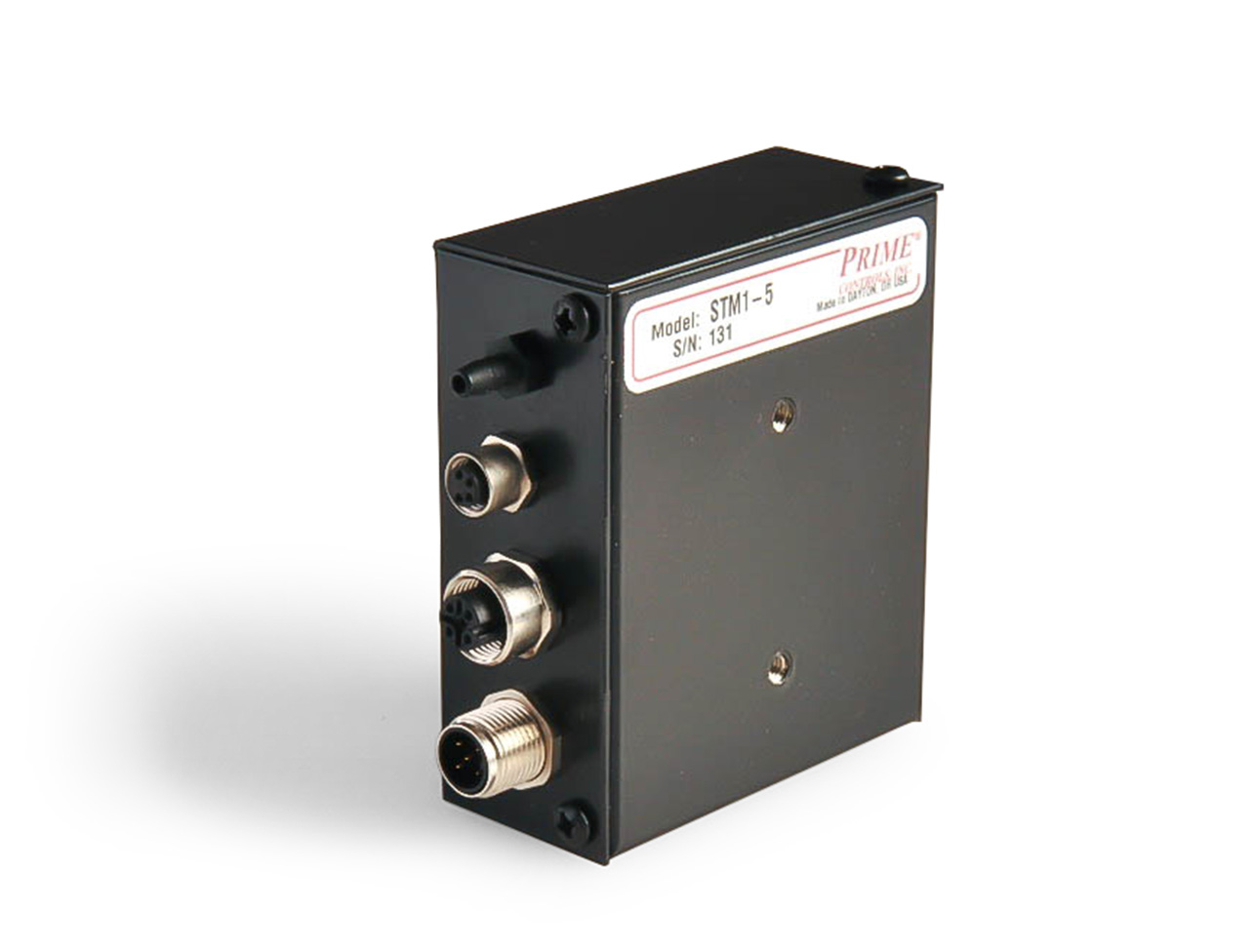

specifications operating instructionsLow pressure: 0 to 5 PSI range.

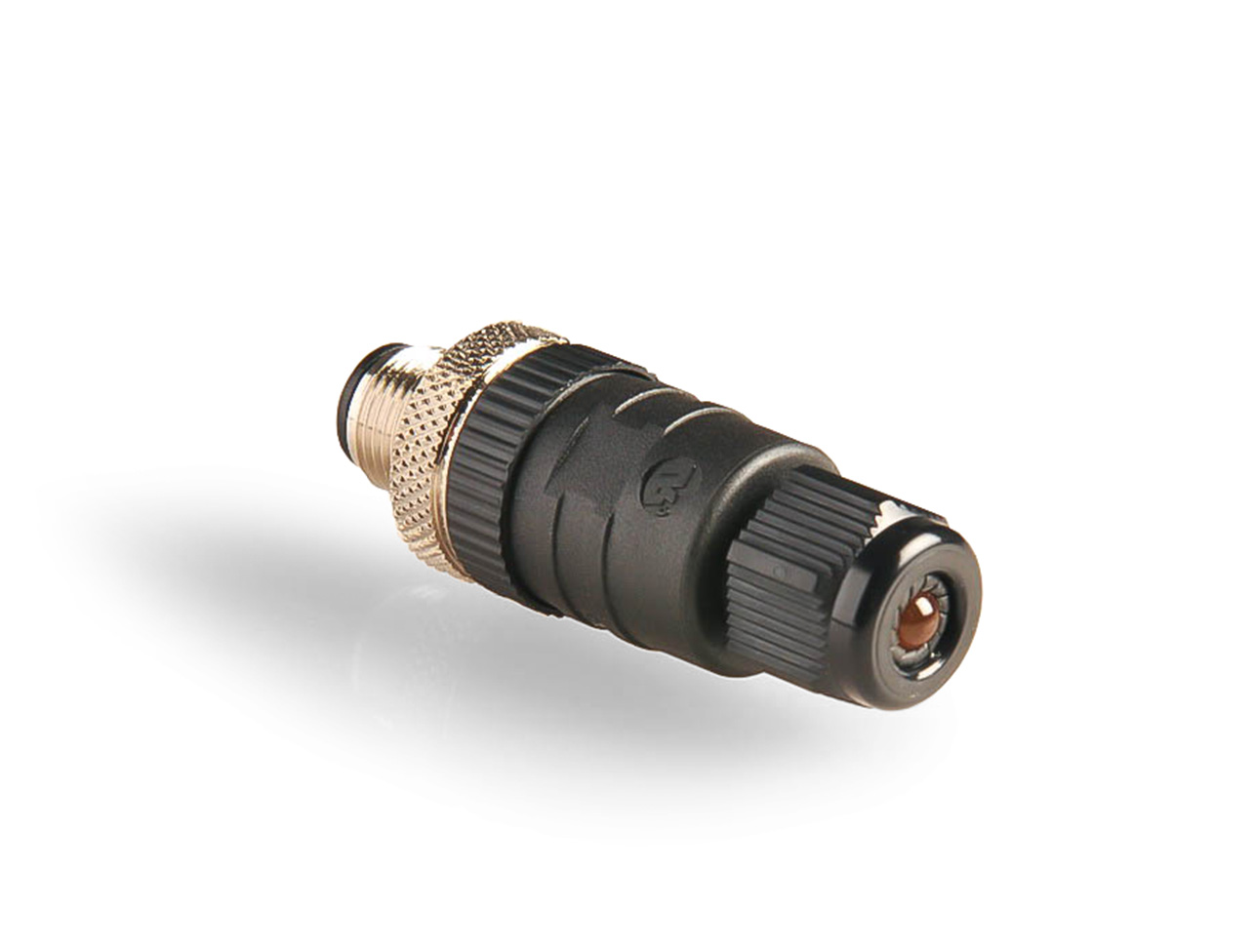

specifications operating instructionsThe last connector for STM Daisey Chain.

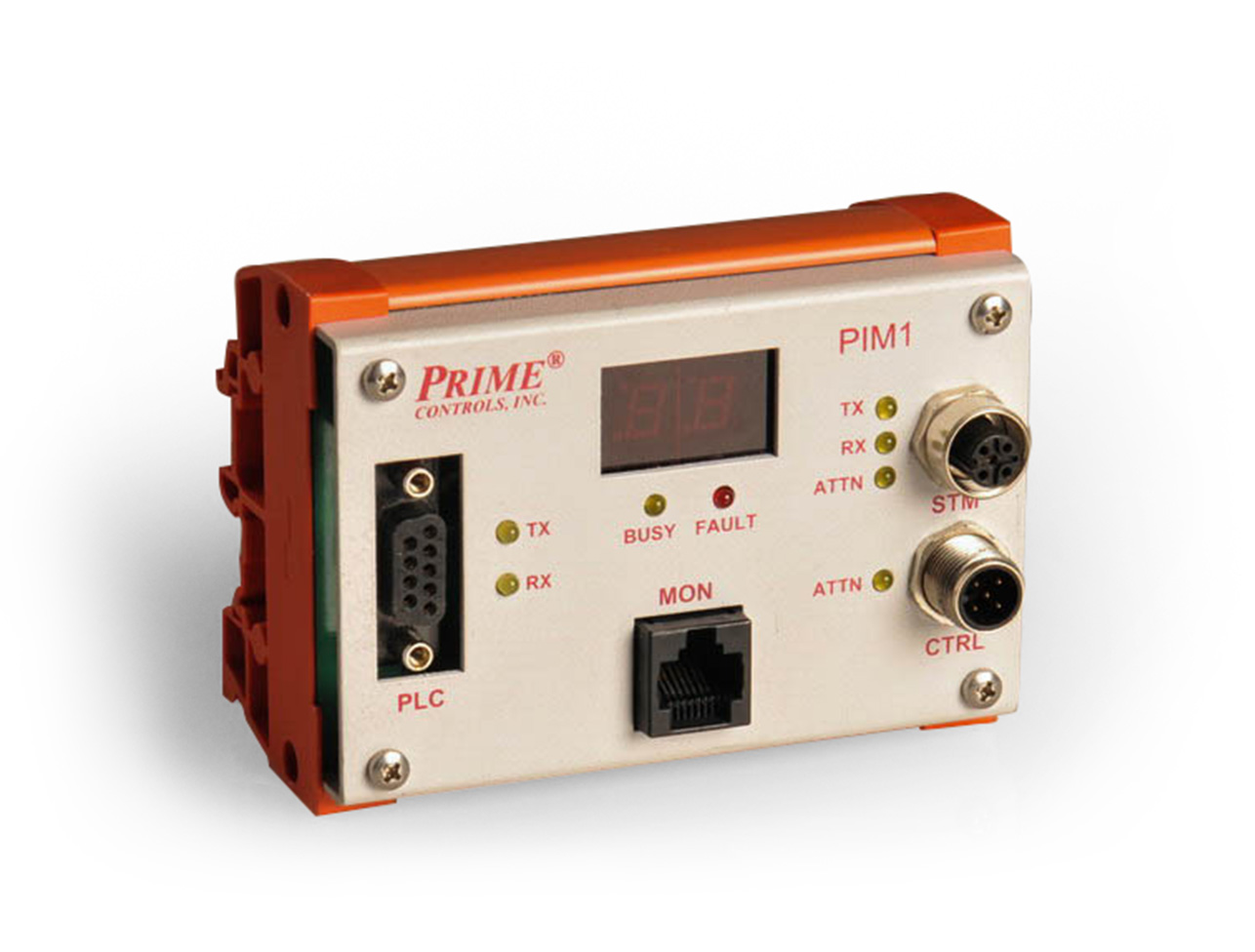

specifications operating instructionsA microcontroller based interface module. The PIM1 connects between a master controller, such as a PLC, and one or more STM1 leak test modules, and translates simple ASCII commands from the master controller to message packets intelligible to the STM modules.
specifications operating instructions1 STM Series Control
1 RI100 Reset Illuminator
1 RR100 Infrared Light Receiver
1 T1 Connector

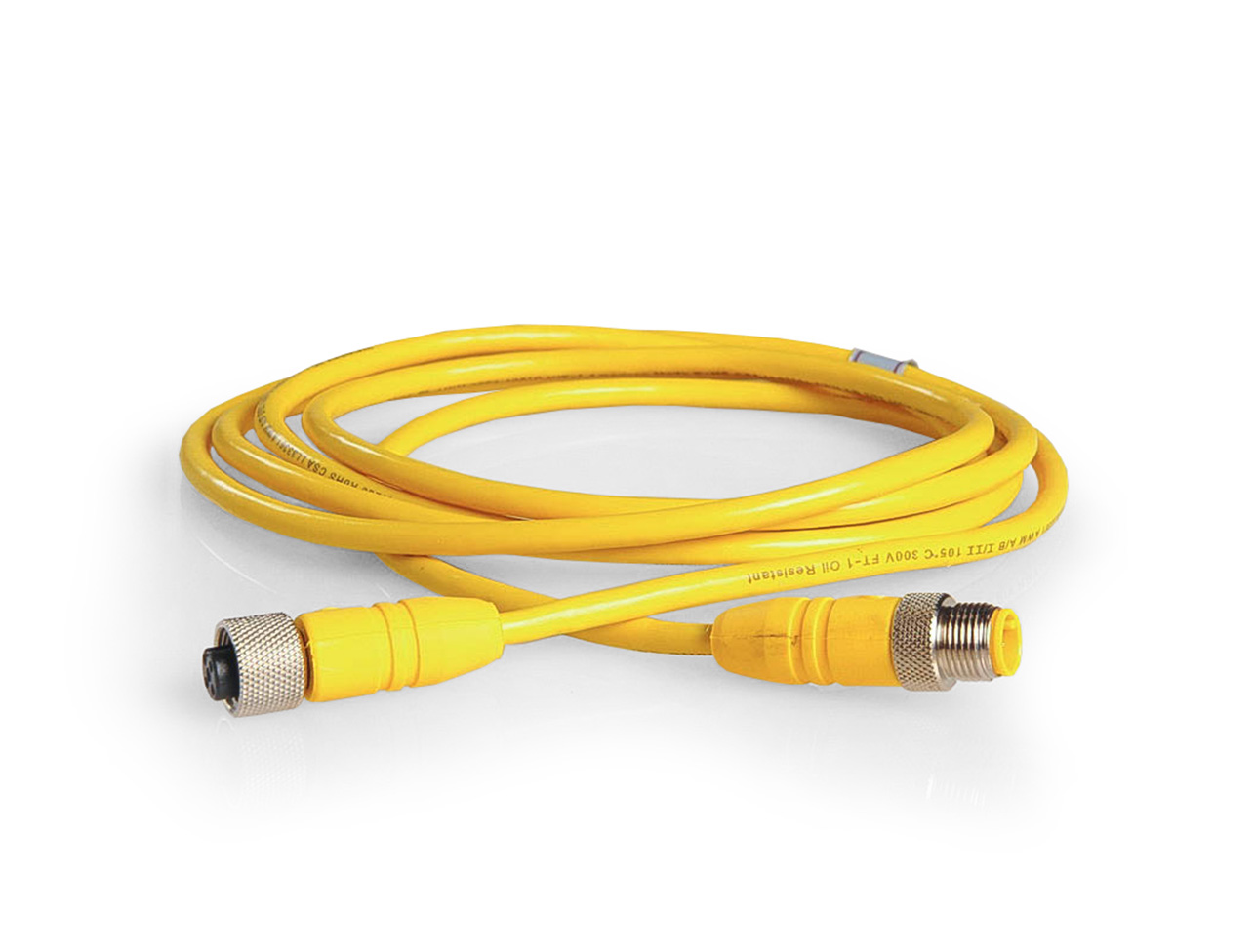

1 CBL112 Series Cable

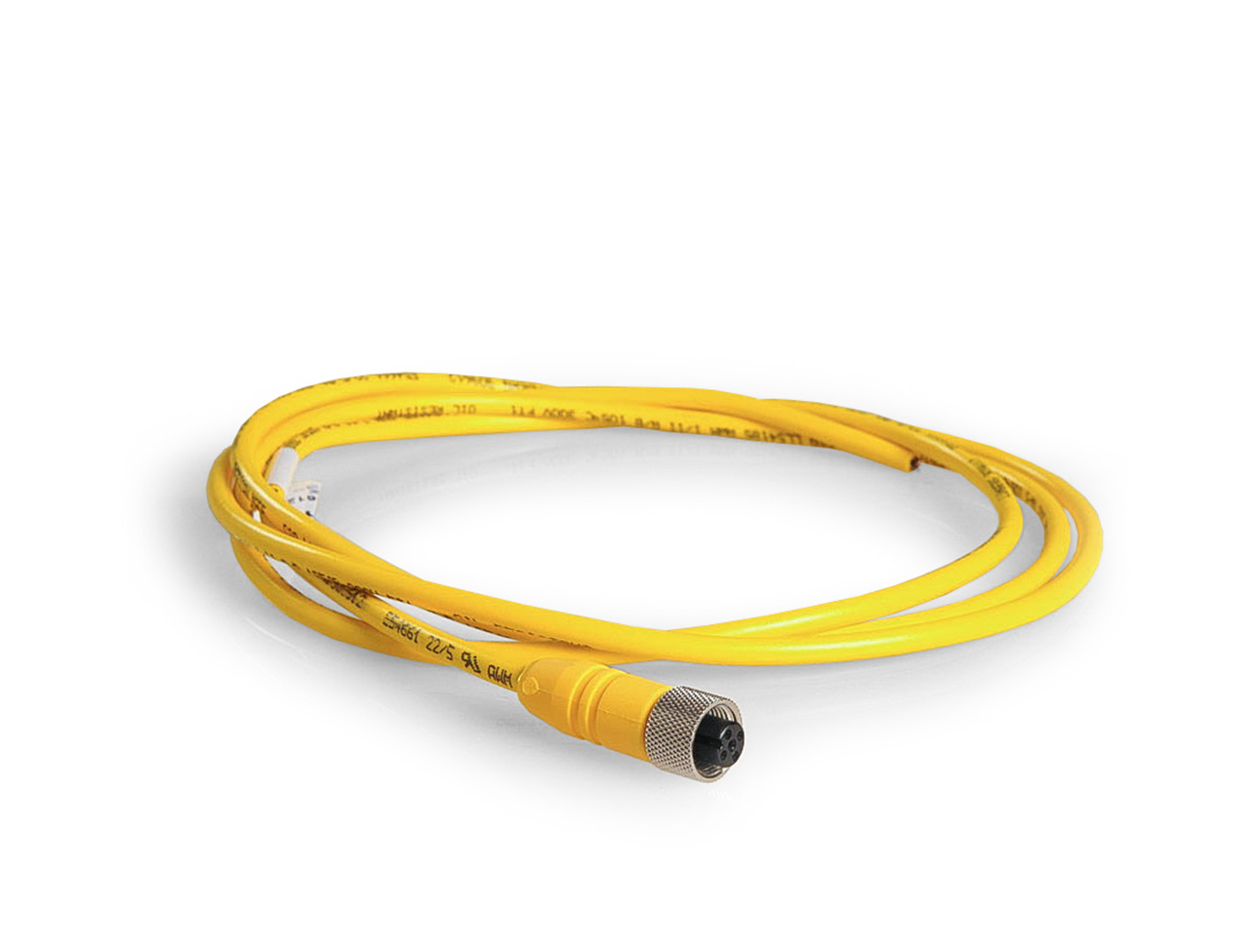

1 CBL113 Series Cable
1 PIM1 Microcontroller Interface Module
Low cost single-probe, contacting double sheet detection system for thin steel and ferrous metals.
Air leak detection system for Borden/Alcoa-style can body leak testers.
