Industrial Automation

    SC200 Series

    Dual-probe, non-contacting double shell and missing tab for conversion presses.

    This unique compact, part detection control, when paired with a single sensor, will detect the presence of ferrous metal parts.

    The difference between the two part detection controls is in the output on-time. The SC200 output turns on after the part is present for a minimum of 8 mS. It remains on during the presence of the part. The SC201 output turns on after the part is present for a minimum of 2 mS. It has a built-in pulse stretcher. It remains on during part presence and will not turn off until 25 mS has elapsed. When choosing the right controller, choose the SC200 for a slow operation and where 8 mS de-bounce is necessary to overcome the erratic motion of a part. Choose SC201 where 2 mS de-bounce will not allow the detection of the lead edge of a part multiple times and where the output must remain on for at least 25 mS to energize a relay coil or overcome a slow PLC scan time.

    Series Controls Options

    SC201, SC200,

    Build full system

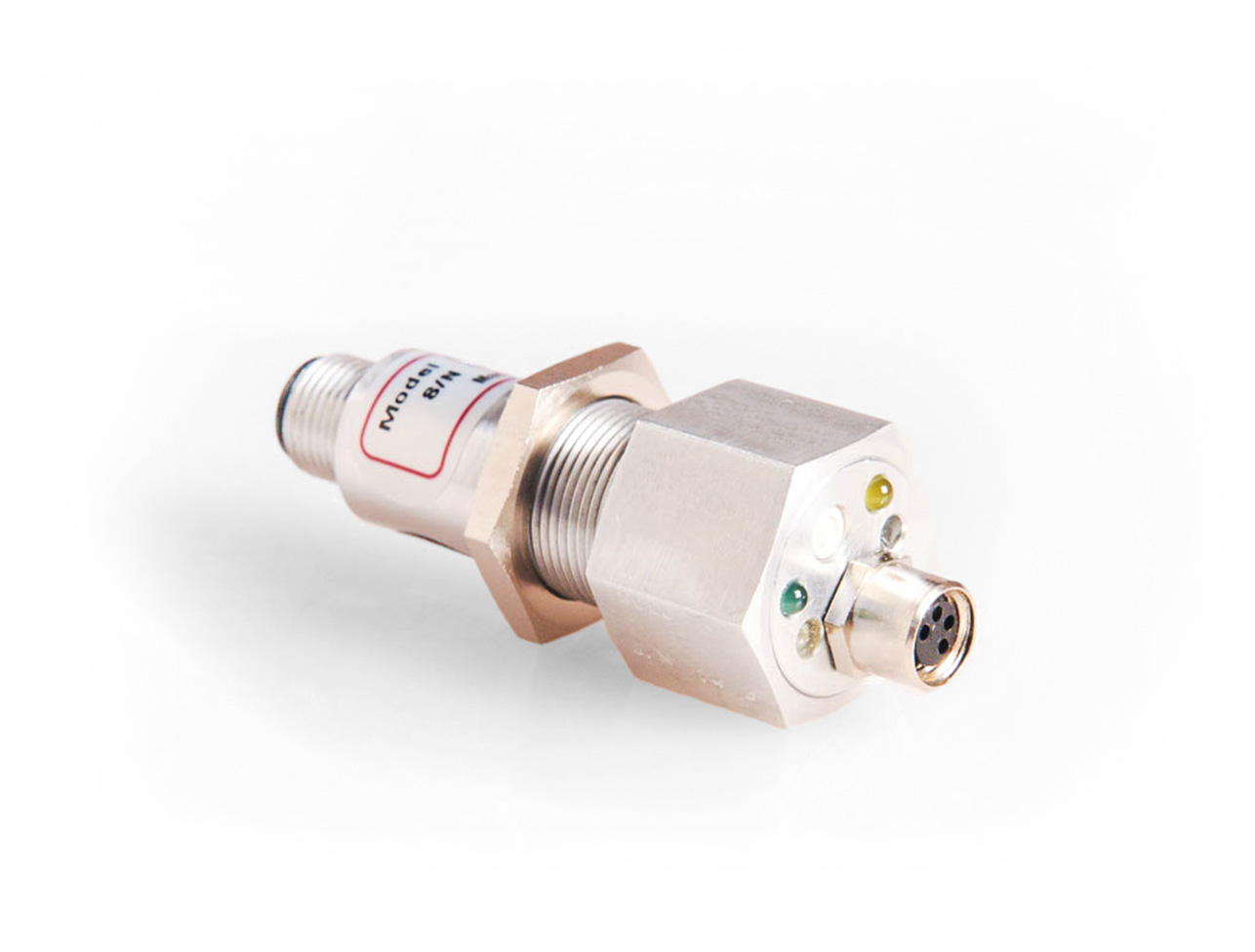

    SC201

    Part detection control that's better for applications where the 2 mS de-bounce will not allow the detection of the lead edge of a part, multiple times and where the output must remain on for at least 25 mS to energize a relay coil or overcome a slow PLC scan time.

    specifications operating instructions
    Add To QUOTE
    QTY 1

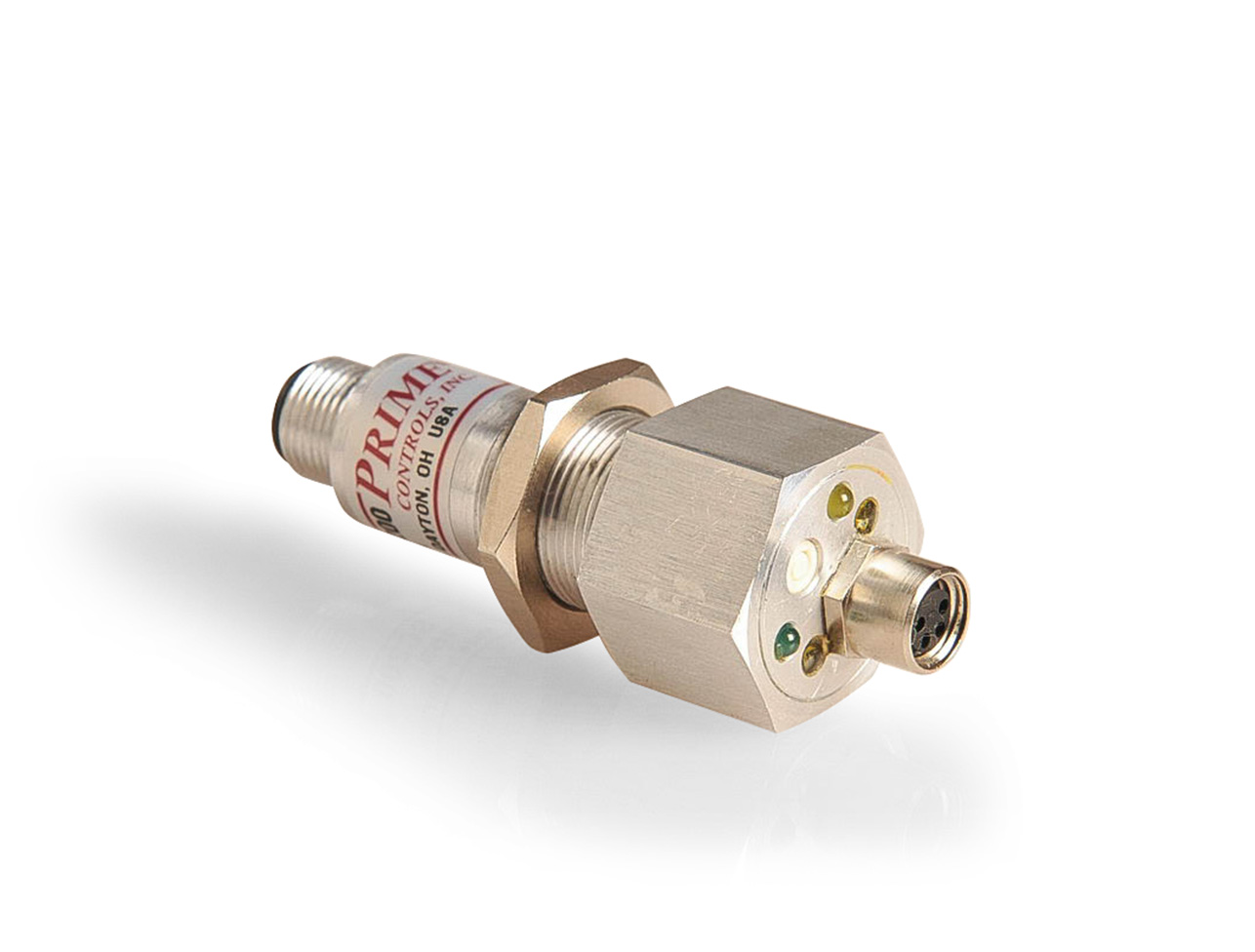

    SC200

    Part detection control that's better for slower operations and where 8 mS de-bounce is necessary to overcome the erratic motion of a part.

    specifications operating instructions
    Add To QUOTE
    QTY 1

    Select Your Sensors & Cables

    Build the Complete System

    1 SC200 Series Control
    1 FS Series Sensor

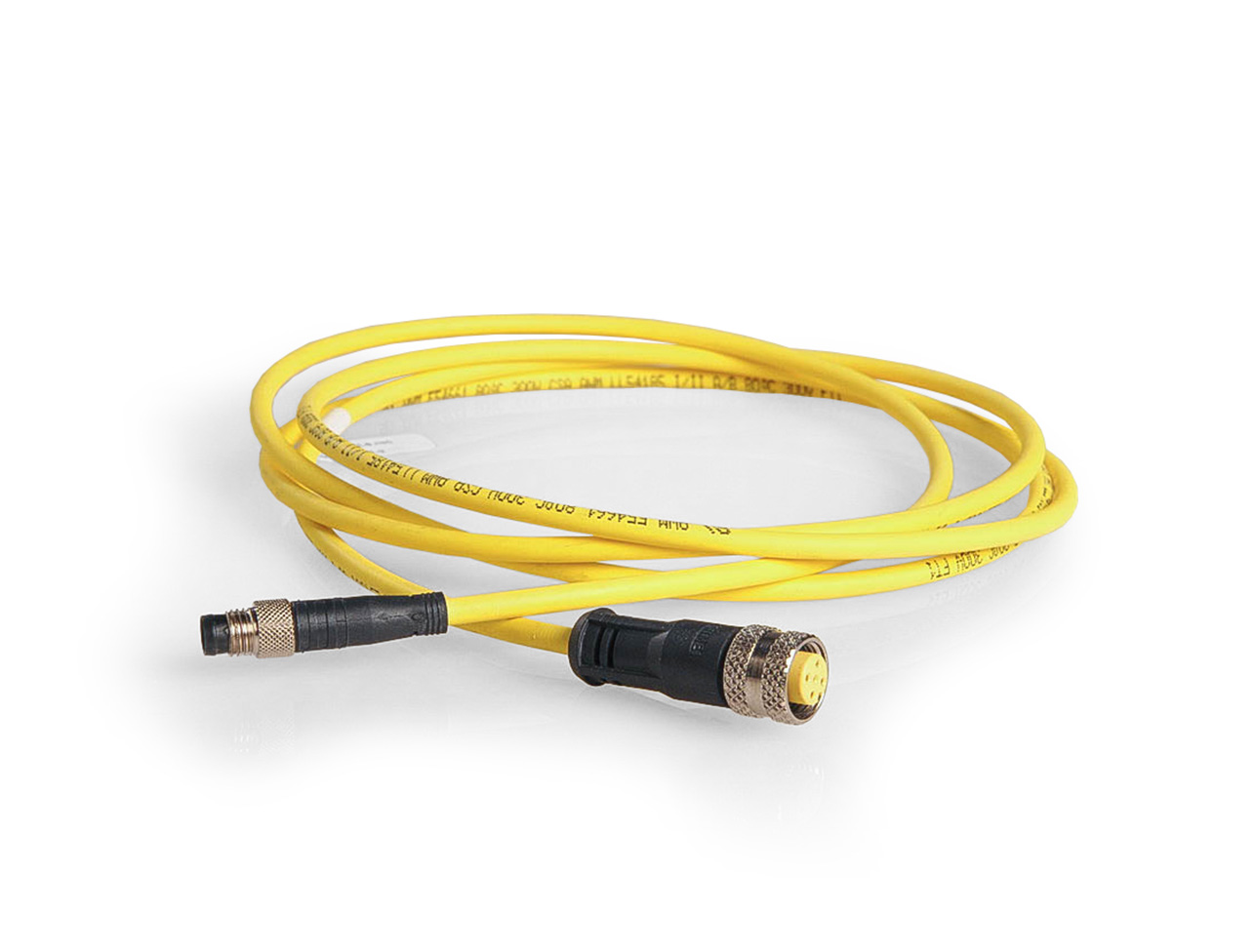

    1 CBL111 Series Cable for Interconnect

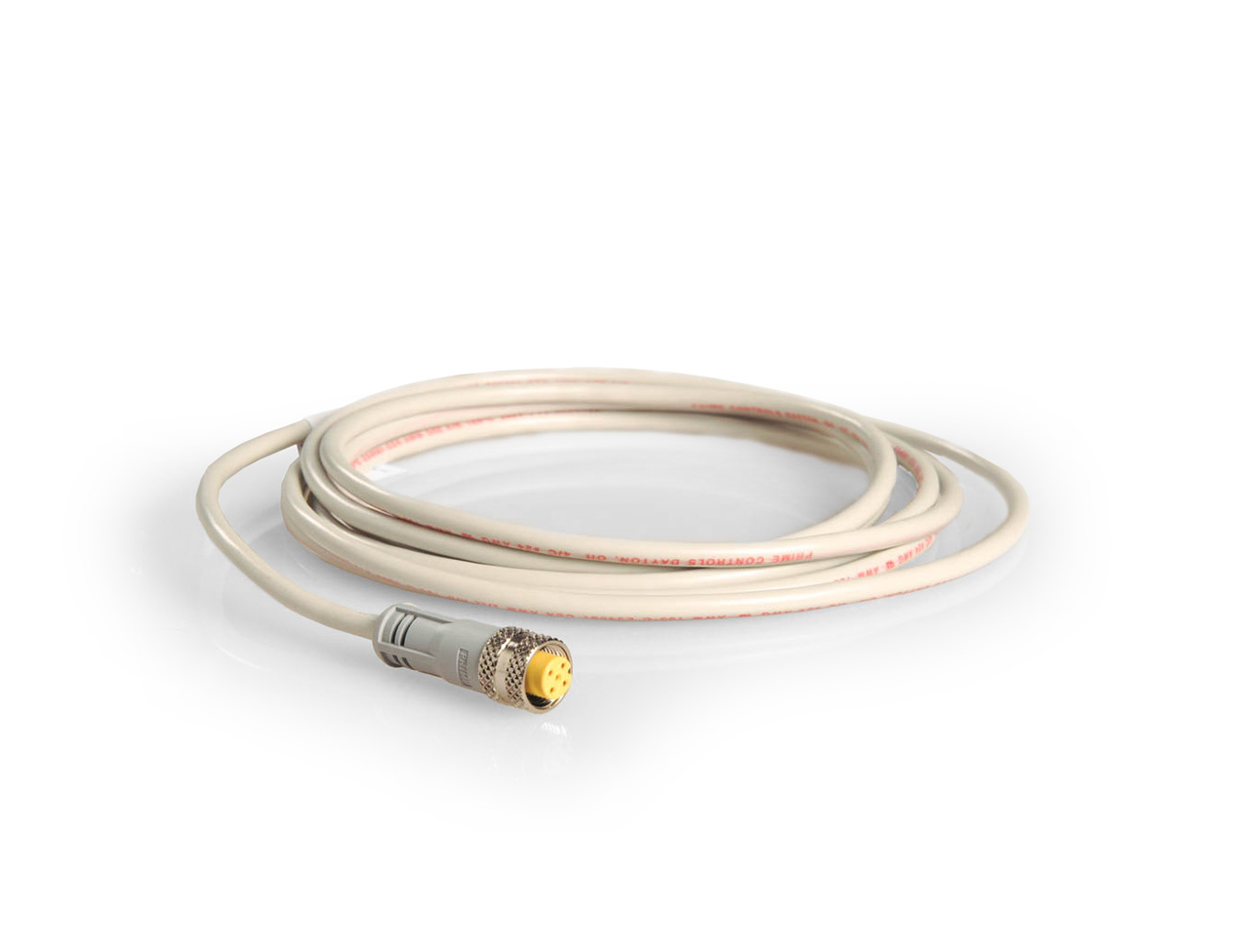

    1 CBL104 Series Cable for Power

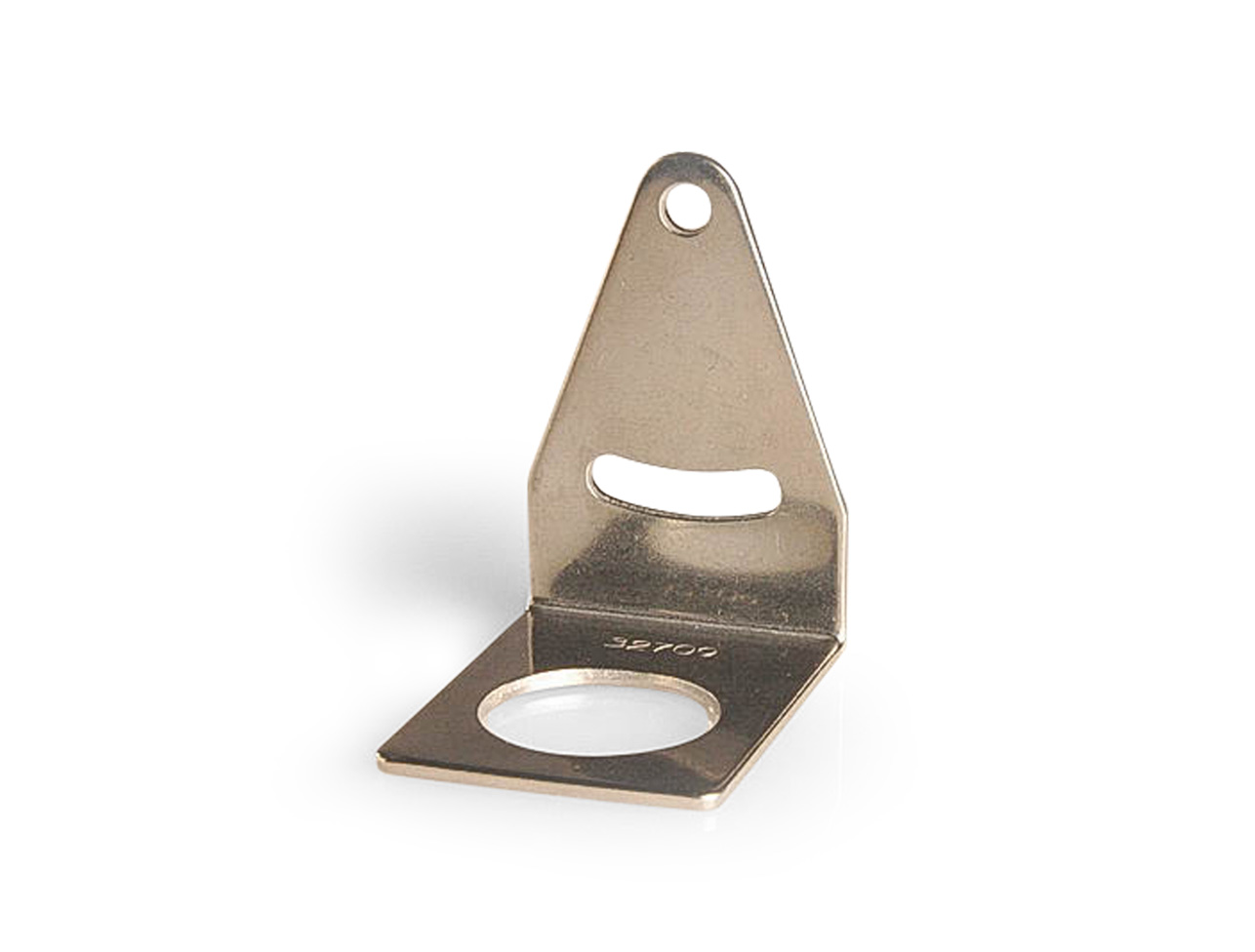

    Mounting bracket available if needed.
    Build full system
