Dual-probe, non-contacting double shell, missing tab and leak detector for conversion presses.
The SD230 TriSense provides a simple and dependable way to monitor can ends traveling through a conversion press. Using a set of sensors installed at the in feed and discharge of each lane, as well as a light leak detection system immediately following the press, the SD230 detects both double shells, missing tabs, and leak all in one system. The HMI connectivity feature of the SD230 provides operators with diagnostic information and remote setup and operation of the whole system.
SD230, SQ100, ET230, LH200, MI230, PS504, SL100,

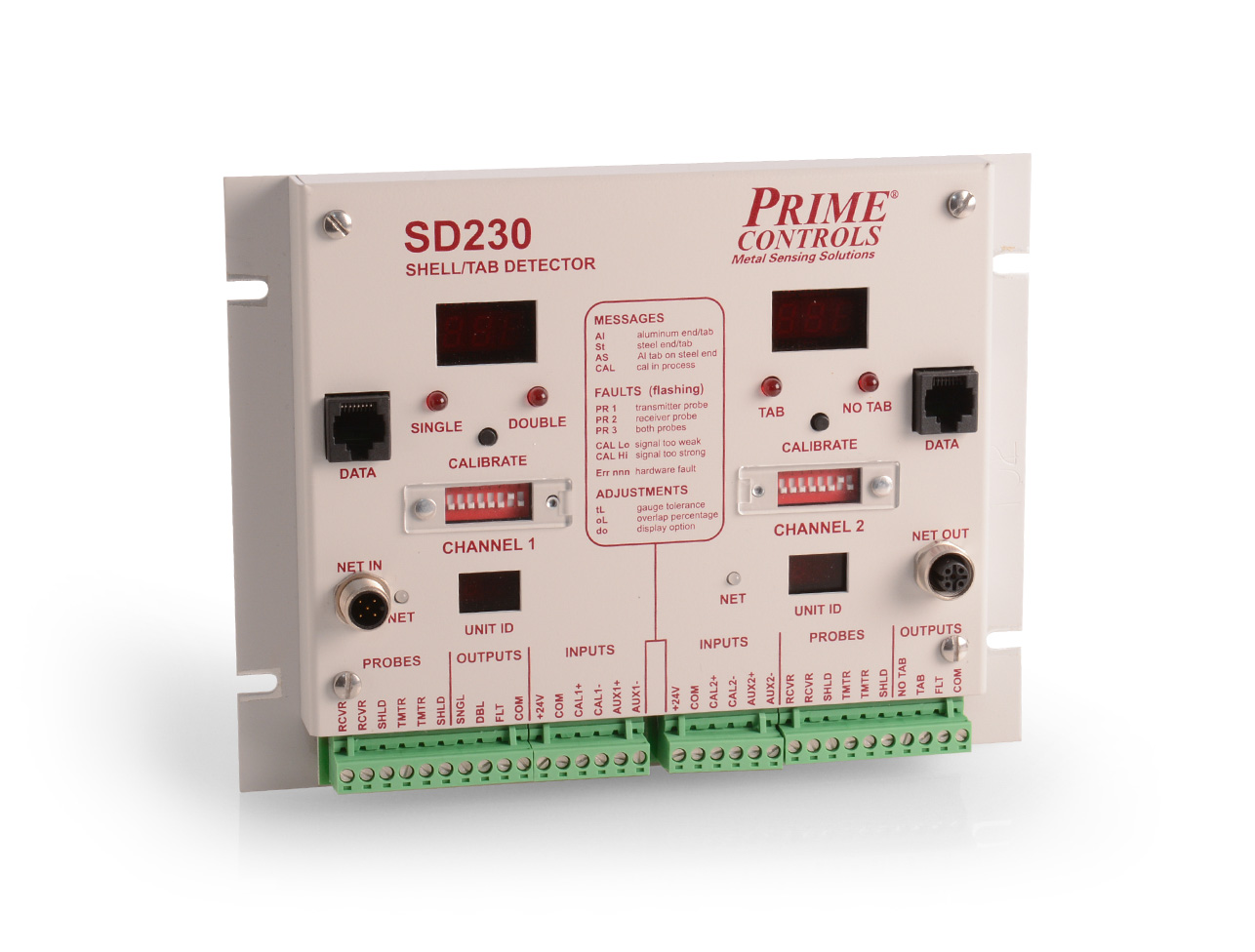

Double shell and missing tab detector used to monitor can end traveling through conversion press. (This product is obsolete and replaced with the SD230 FLEX and SD230 MINI. If you'd like to make a final purchase before End of Sales date of 2/1/23, contact Prime Controls.)specifications

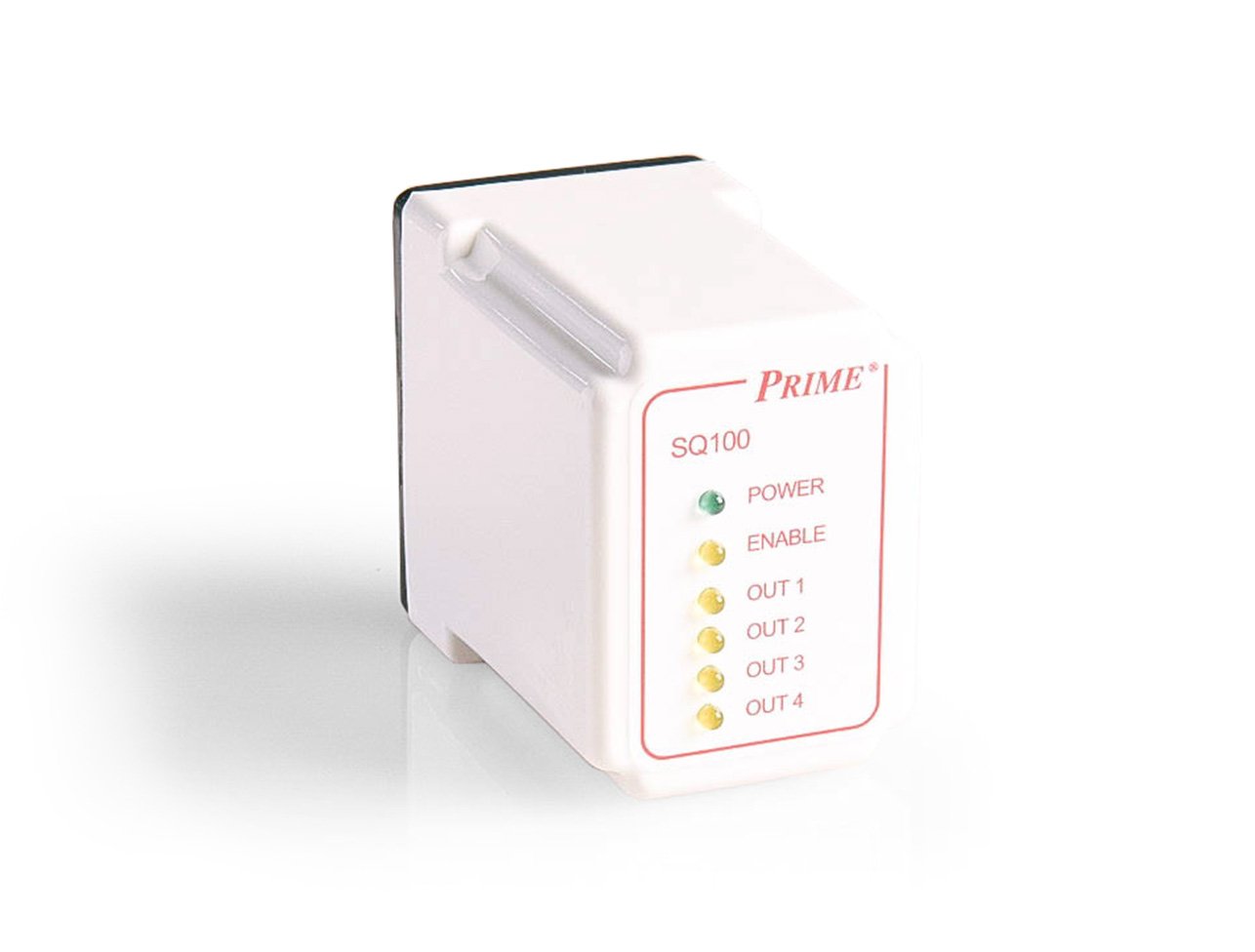

Electronic sequencing module housed in a plastic enclosure. Used to stagger the enable signals to the LH200 modules, ensuring no two units flash simultaneously.specifications

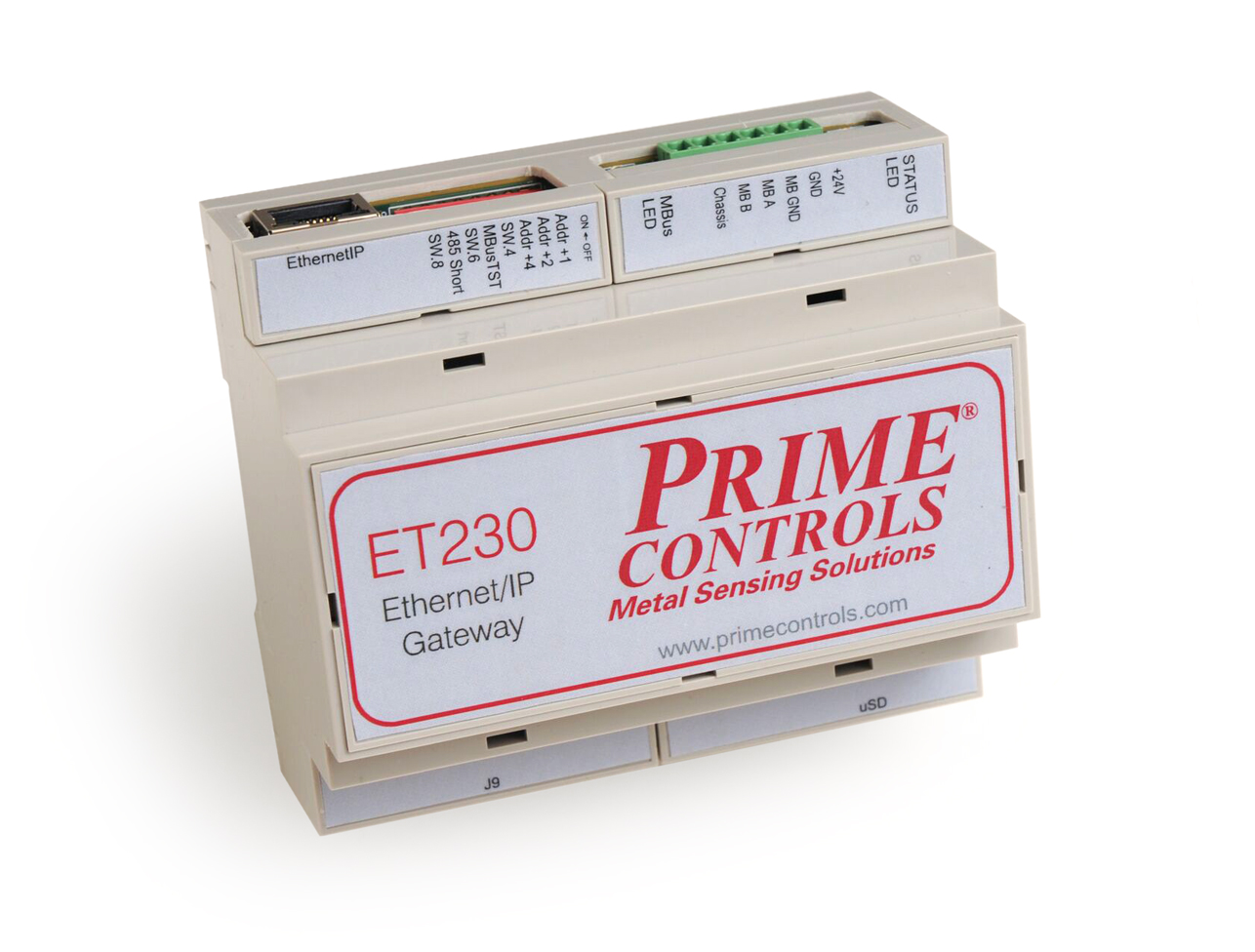

Industrial communications gateway via EthernetIP that allows the TriSense system to communicate with OEM programmed PLC and HMI.specifications

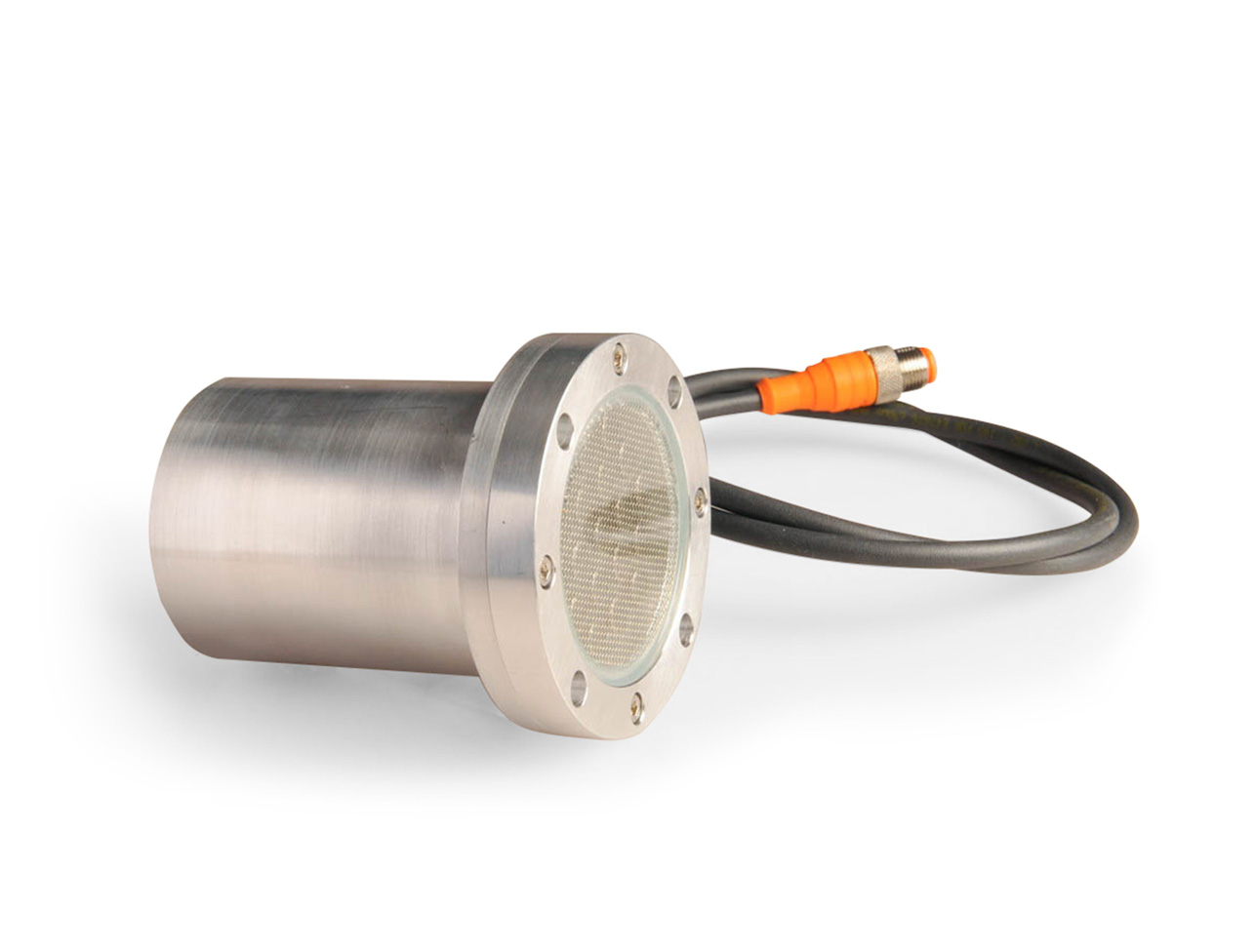

Light head sensor detecting holes through metal can ends on a conversion press with leak diameters 5 microns and below - outperforming industry standards.specifications

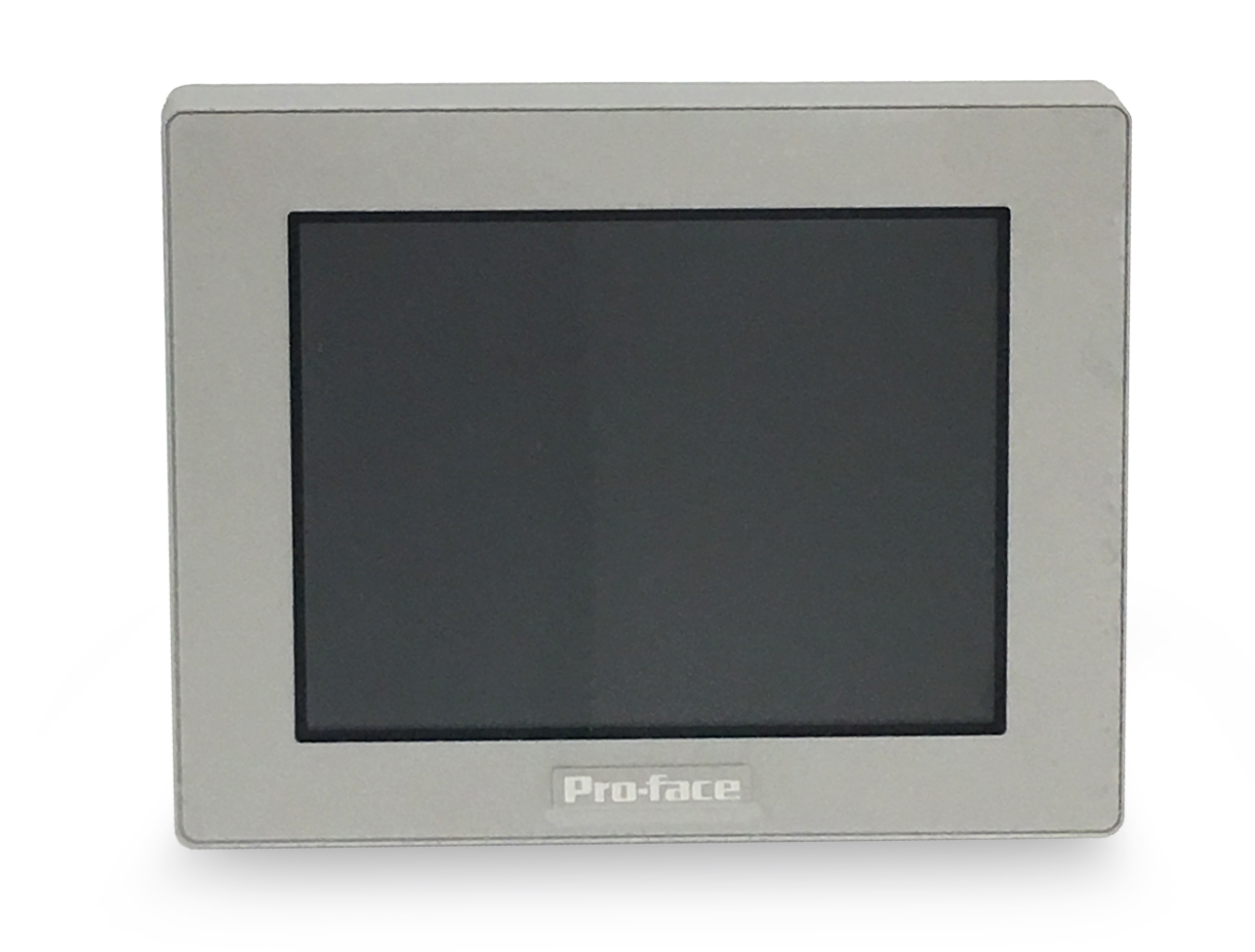

Preprogrammed HMI for retrofitting presses to allow for industrial communications.specifications

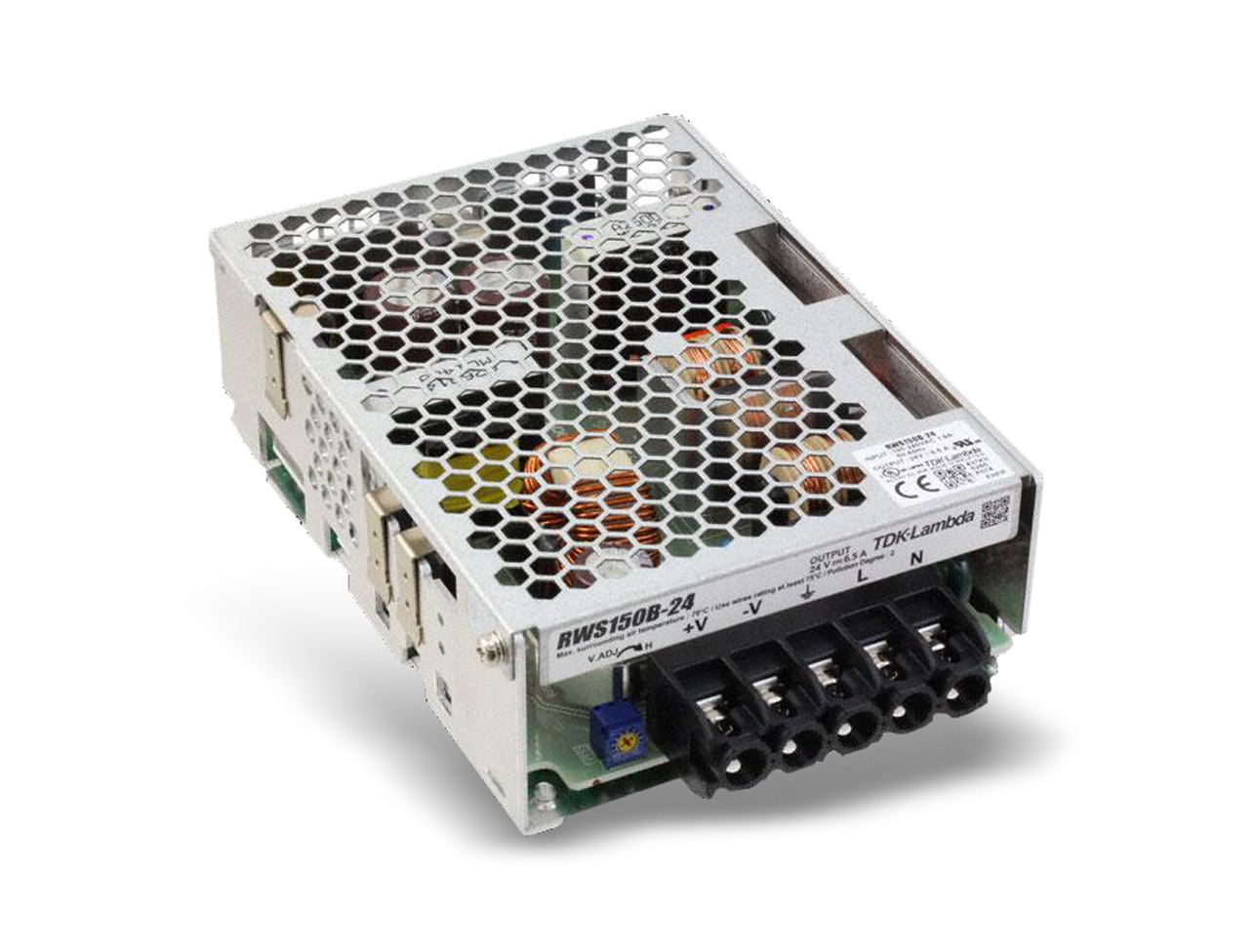

24V DIN rail power supply with universal 100Vac to 240Vac input.specifications
1 SD230 Shell/Tab Detector

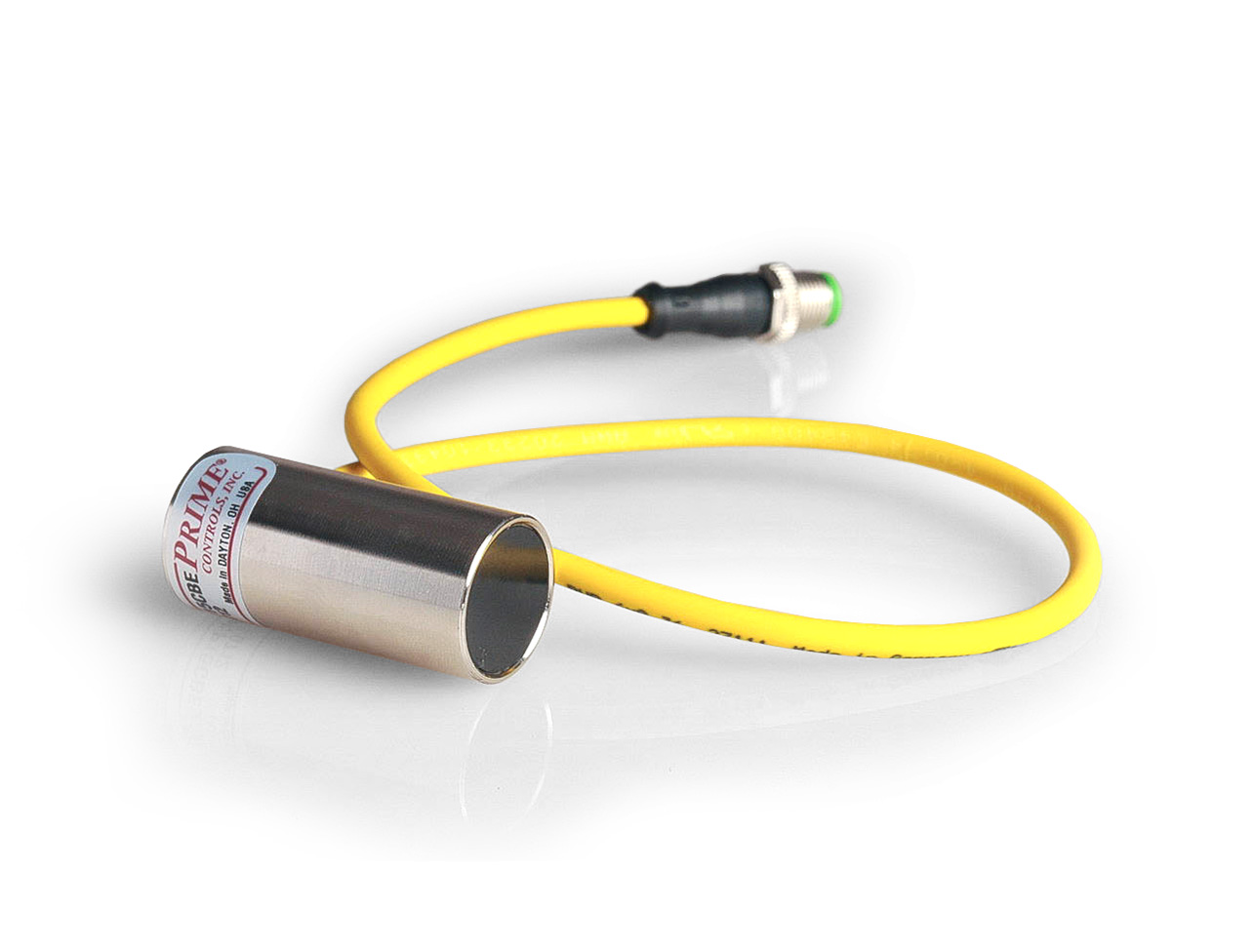

4 P15 Series Probes

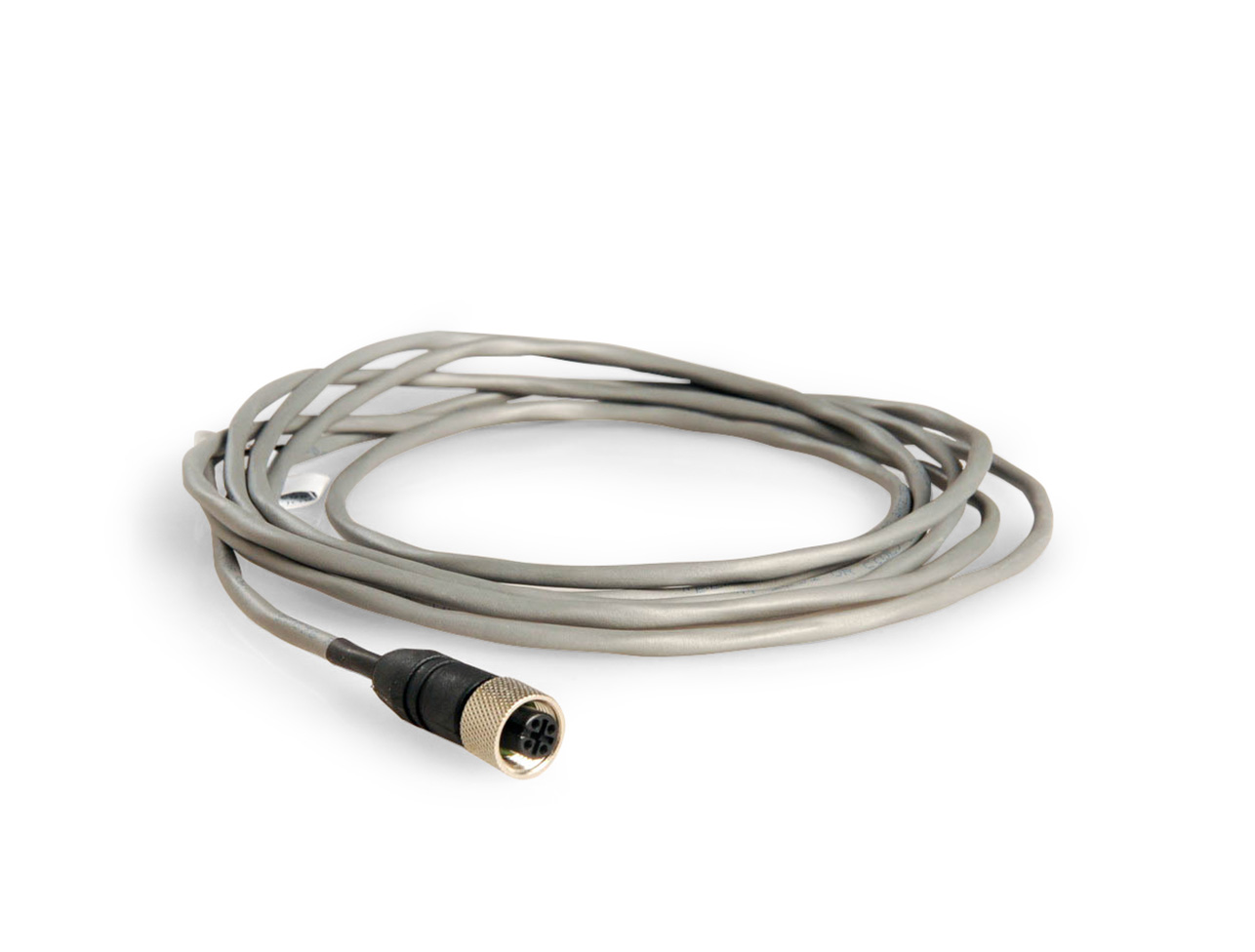

4 CBL101 Series Cables
1 LH200 Light Head

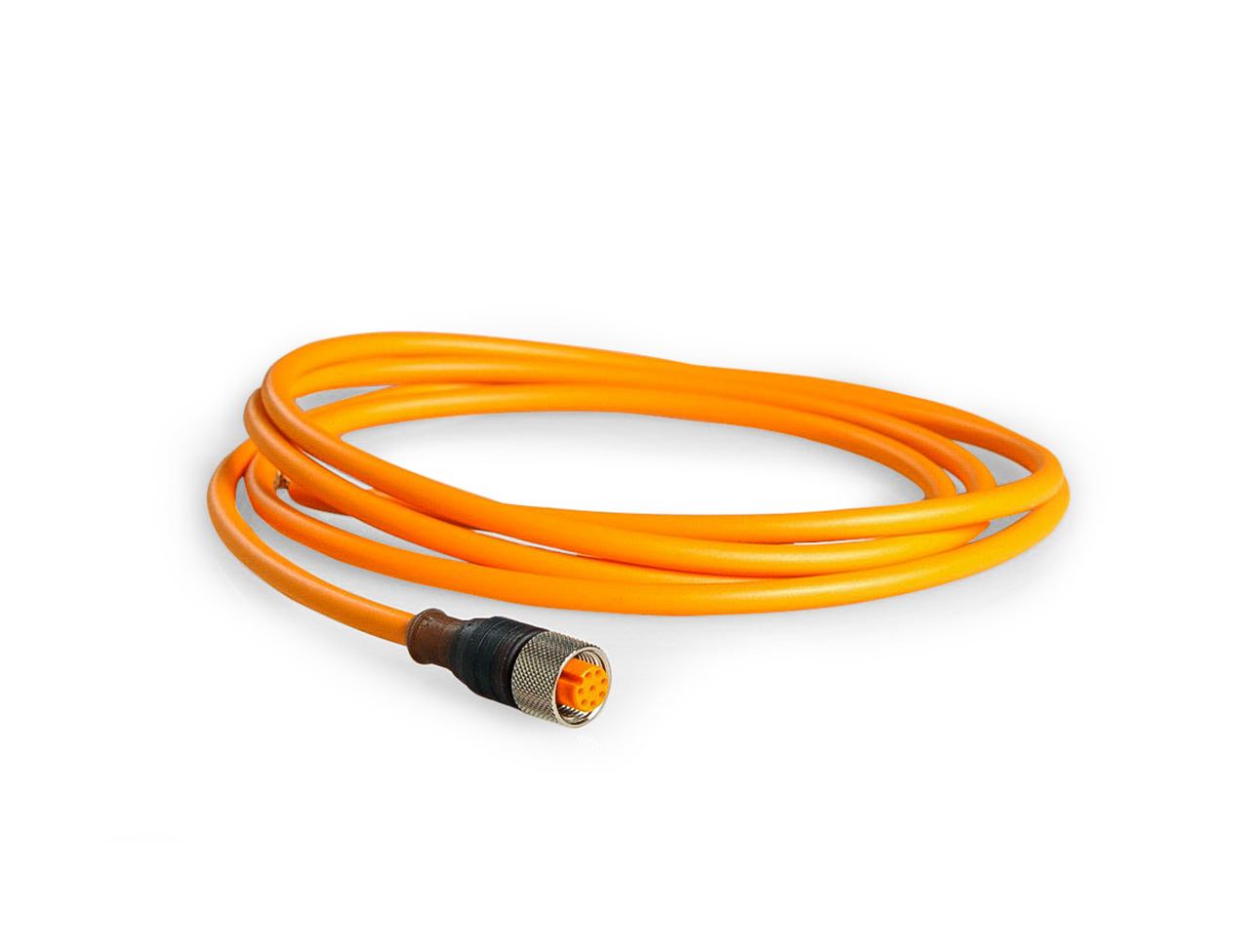

1 CBL108 Connector-Cable

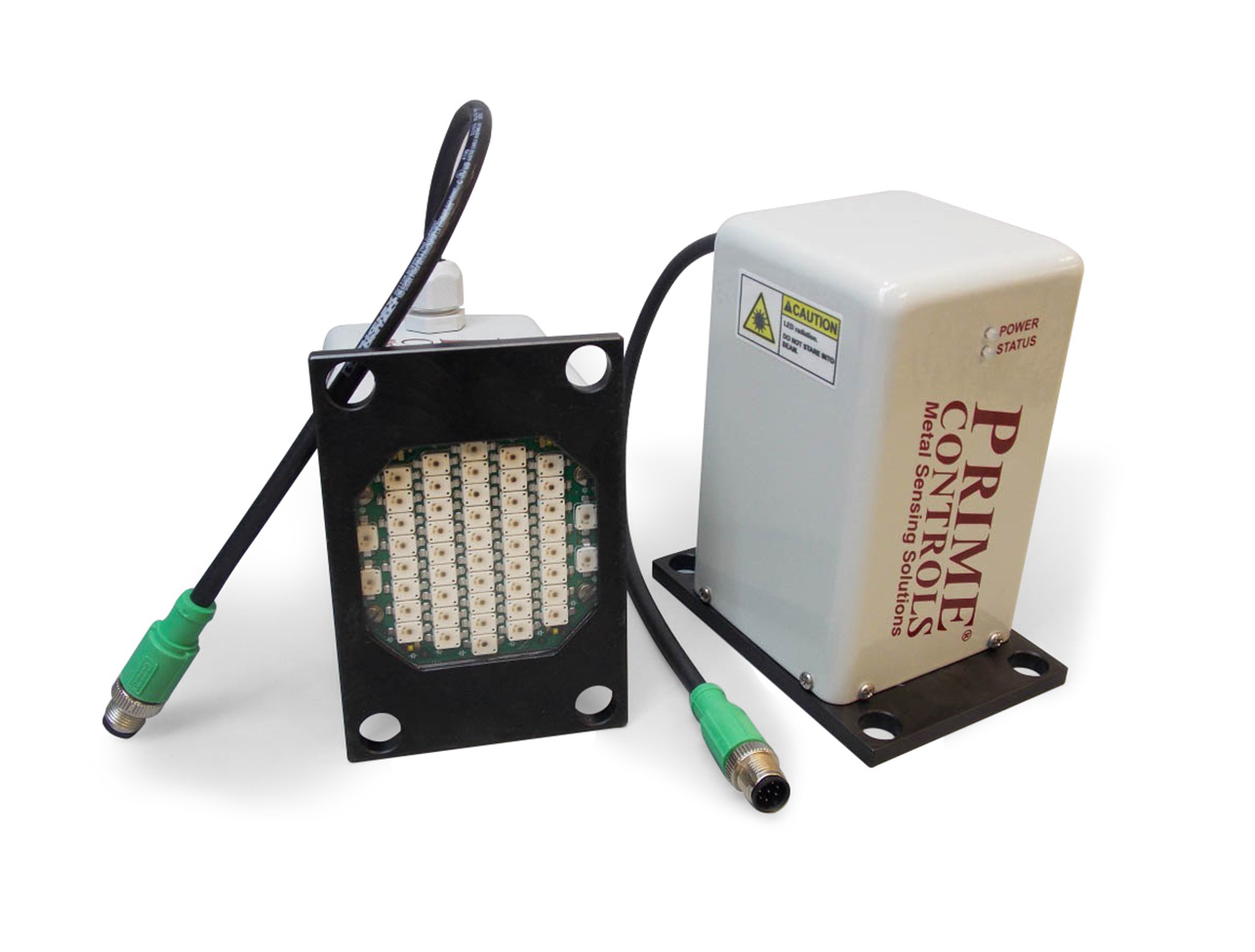

1 SL100 LED Strobe

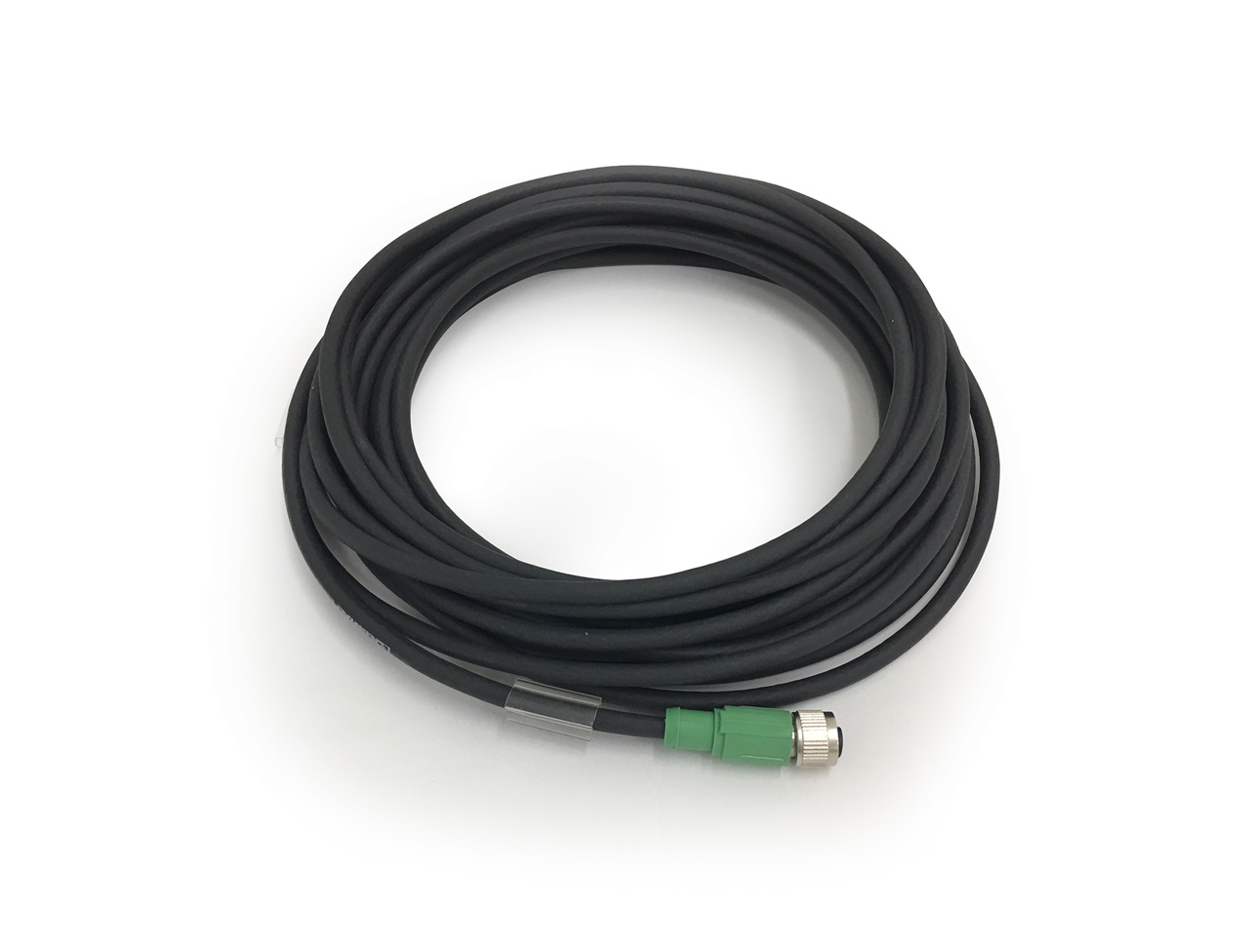

1 CBL128 Connector-Cable
1 CBL230-ETH-2 Connector-Cable
1 PS504 Power Supply
1 AC230-RJ Breakout
1 SQ100 Sequencer Module
1 ET230 EthernetIP Gateway (Option)
1 MI230 HMI Display (Option)
3 CBL112 Cable Interconnect
1 CBL113 Cable (ET230 Option)
1 CBL230-HMI Cable (MI230 Option)
Mounting bracket available if needed.
Dual-probe, non-contacting double sheet detection systems for all metal types.
Prime Controls offers complete end light leak detection for high-speed EOE conversion presses with its Light Leak Detection Series.
